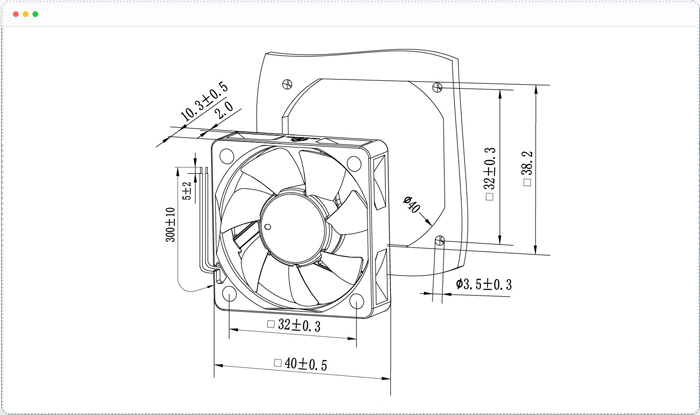

Overall Dimension:40x40x10mm
Material:Impeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires : UL 1061 AWG#26 or Equivalent
Impeller: 7 Blades
Rotational direction CCW view from impeller side
Mass: 18g

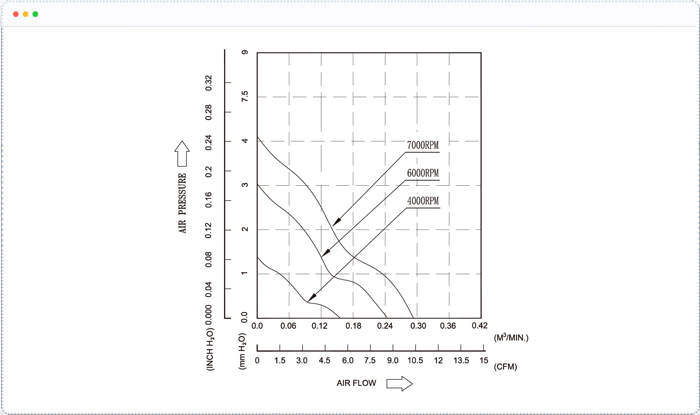

| 产品编号 | 轴承类型 | 转速 | 额定电压 | 额定电流 | 额定输入功率 | 最大流量 | 最大静压 | 噪声 | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |
| SA050410-L | R | 4000 | 5 | 0.05 | 0.25 | 5.10 | 8.70 | 1.39 | 0.05 | 25.5 |
| SA050410-M | R | 6000 | 5 | 0.16 | 0.80 | 8.10 | 13.7 | 3.03 | 0.12 | 30.7 |
| SA120410-L | R | 4000 | 12 | 0.02 | 0.24 | 5.10 | 8.70 | 1.39 | 0.05 | 25.5 |
| SA120410-M | R | 6000 | 12 | 0.05 | 0.60 | 8.10 | 13.7 | 3.03 | 0.12 | 30.7 |
| SA120410-H | R | 7000 | 12 | 0.12 | 1.44 | 9.70 | 16.5 | 4.10 | 0.16 | 33.2 |
