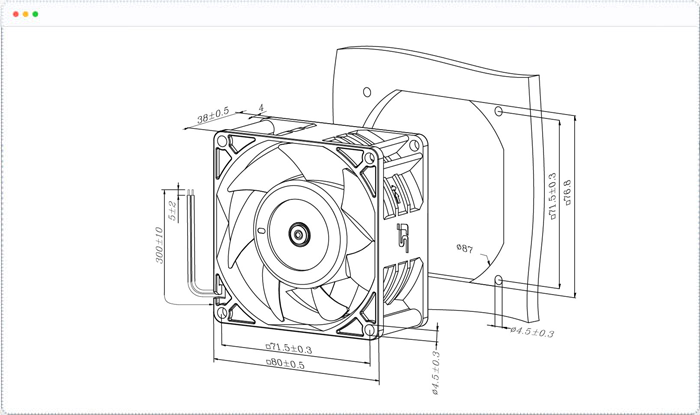

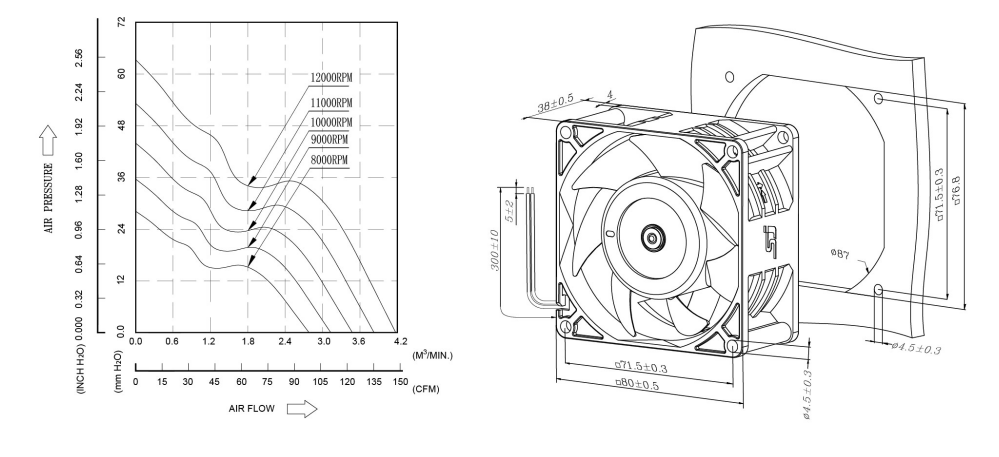

Overall Dimension:80x80x38mm
Material:Impeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#24 or Equivalent
Impeller: 7 Blades
Rotational direction CCW view from impeller side
Mass: 215g

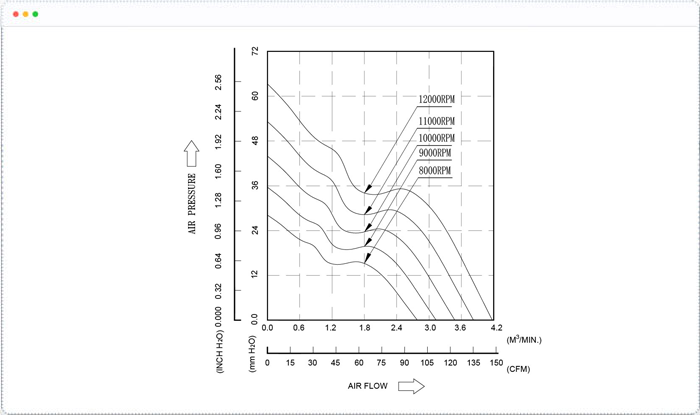

| 产品编号 | 轴承类型 | 转速 | 额定电压 | 额定电流 | 额定输入功率 | 最大流量 | 最大静压 | 噪声 | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |
| SA120838-L | B | 8000 | 12 | 1.18 | 14.2 | 98.4 | 167.0 | 28.1 | 1.11 | 55.2 |
| SA120838-M | B | 9000 | 12 | 1.68 | 20.2 | 110.7 | 187.9 | 35.5 | 1.40 | 57.7 |
| SA120838-H | B | 10000 | 12 | 2.30 | 27.6 | 123.0 | 208.8 | 43.9 | 1.73 | 60.0 |
| SA120838-U | B | 11000 | 12 | 3.00 | 36.0 | 135.3 | 229.7 | 53.1 | 2.09 | 62.0 |
| SA120838-S | B | 12000 | 12 | 4.00 | 48.0 | 147.6 | 250.5 | 63.2 | 2.49 | 64.0 |
| SA240838-L | B | 8000 | 24 | 0.59 | 14.2 | 98.3 | 167.0 | 28.1 | 1.11 | 55.2 |
| SA240838-M | B | 9000 | 24 | 0.84 | 20.2 | 110.7 | 187.9 | 35.5 | 1.40 | 57.7 |
| SA240838-H | B | 10000 | 24 | 1.15 | 27.6 | 123.0 | 208.8 | 43.9 | 1.73 | 60.0 |
| SA240838-U | B | 11000 | 24 | 1.50 | 36.0 | 135.3 | 229.7 | 53.1 | 2.09 | 62.0 |
| SA480838-L | B | 8000 | 48 | 0.30 | 14.2 | 98.4 | 167.0 | 28.1 | 1.11 | 55.2 |
| SA480838-M | B | 9000 | 48 | 0.42 | 20.2 | 110.7 | 187.9 | 35.5 | 1.40 | 57.7 |
| SA480838-H | B | 10000 | 48 | 0.58 | 27.6 | 123.0 | 208.8 | 42.9 | 1.43 | 60.0 |
