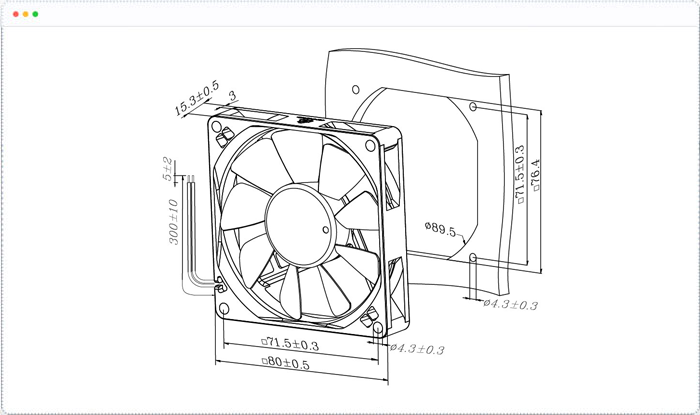

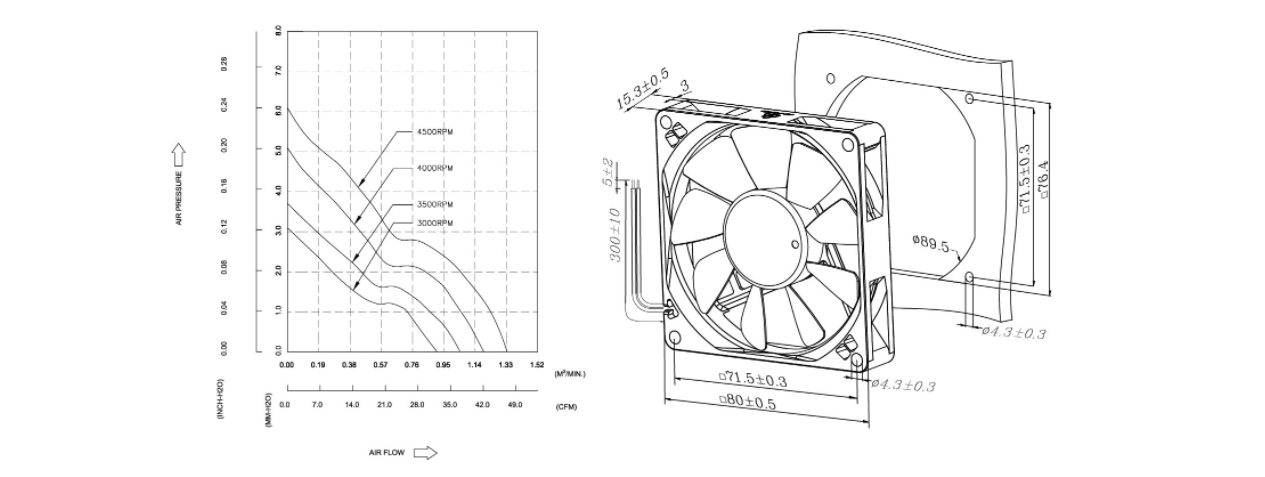

Overall Dimension:80x80x15mm
Material:Impeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires: UL 1061 AWG#26 or Equivalent
Impeller: 9 Blades
Rotational direction CCW view from impeller side
Mass:80g
| 产品编号 | 轴承类型 | 转速 | 额定电压 | 额定电流 | 额定输入功率 | 最大流量 | 最大静压 | 噪声 | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |
| SA120815-L | B | 3000 | 12 | 0.12 | 1.44 | 32.1 | 54.4 | 3.08 | 0.12 | 31.2 |
| SA120815-M | B | 3500 | 12 | 0.16 | 1.92 | 37.0 | 62.9 | 3.60 | 0.14 | 34.8 |
| SA120815-H | B | 4000 | 12 | 0.22 | 2.64 | 42.1 | 71.5 | 5.06 | 0.20 | 37.7 |
| SA120815-U | B | 4500 | 12 | 0.30 | 3.60 | 47.2 | 80.1 | 6.08 | 0.24 | 41.1 |
| SA240815-L | B | 3000 | 24 | 0.06 | 1.44 | 32.1 | 54.4 | 3.08 | 0.12 | 31.2 |
| SA240815-M | B | 3500 | 24 | 0.08 | 1.92 | 37.0 | 62.9 | 3.60 | 0.14 | 34.8 |
| SA240815-H | B | 4000 | 24 | 0.11 | 2.64 | 42.1 | 71.5 | 5.06 | 0.20 | 37.7 |
| SA240815-U | B | 4500 | 24 | 0.15 | 3.60 | 47.2 | 80.1 | 6.08 | 0.24 | 41.1 |
