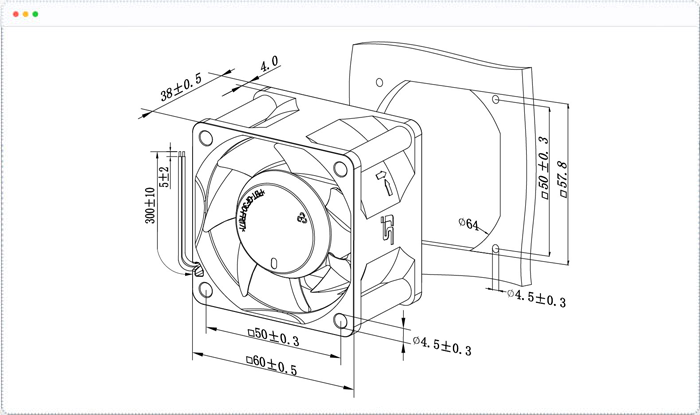

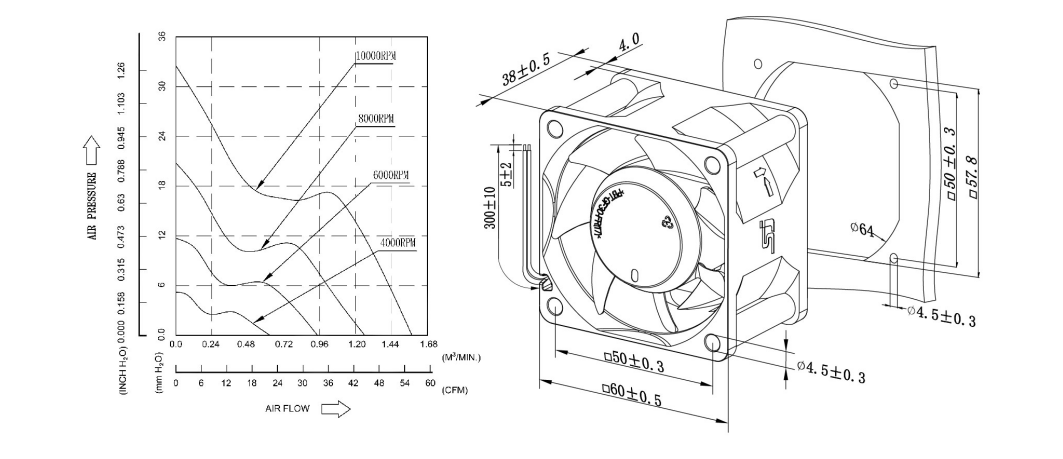

Overall Dimension:60x60x38mm
Material:Impeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires: UL 1007 AWG#26 or Equivalent
Impeller: 7Blades
Rotational direction CCW view from impeller side
Mass:130g
| 产品编号 | 轴承类型 | 转速 | 额定电压 | 额定电流 | 额定输入功率 | 最大流量 | 最大静压 | 噪声 | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |
| SA120638-M | B | 4000 | 12 | 0.16 | 1.90 | 22.3 | 37.7 | 5.19 | 0.20 | 35.1 |
| SA120638-H | B | 6000 | 12 | 0.25 | 3.00 | 33.5 | 56.6 | 11.7 | 0.46 | 43.9 |
| SA120638-U | B | 8000 | 12 | 0.46 | 5.50 | 44.6 | 75.4 | 20.8 | 0.82 | 50.2 |
| SA120638-S | B | 10000 | 12 | 0.90 | 10.8 | 55.8 | 94.3 | 32.5 | 1.28 | 55.0 |
| SA240638-M | B | 4000 | 24 | 0.12 | 2.90 | 22.3 | 37.7 | 5.19 | 0.20 | 35.1 |
| SA240638-H | B | 6000 | 24 | 0.16 | 3.80 | 33.5 | 56.6 | 11.7 | 0.46 | 43.9 |
| SA240638-U | B | 8000 | 24 | 0.26 | 6.20 | 44.6 | 75.4 | 20.8 | 0.82 | 50.2 |
| SA240638-S | B | 9000 | 24 | 0.38 | 9.10 | 50.2 | 84.8 | 26.3 | 1.04 | 52.9 |
