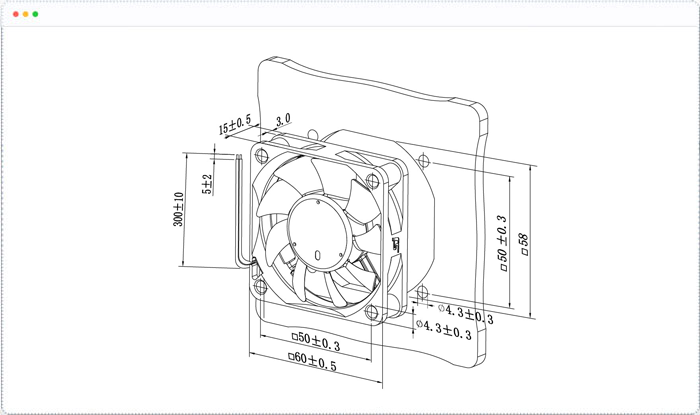

Overall Dimension:60x60x15mm
Material:Impeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires: UL 1061 AWG#28 or Equivalent
Impeller: 9 Blades
Rotational direction CCWview from impeller side
Mass: 38g

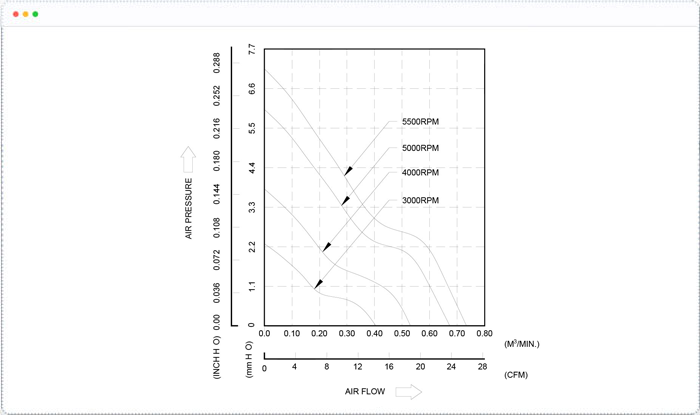

| 产品编号 | 轴承类型 | 转速 | 额定电压 | 额定电流 | 额定输入功率 | 最大流量 | 最大静压 | 噪声 | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |
| SA120615-L | B | 3000 | 12 | 0.05 | 0.60 | 14.2 | 24.1 | 2.30 | 0.09 | 22.0 |
| SA120615-M | B | 4000 | 12 | 0.08 | 0.96 | 18.7 | 31.8 | 3.86 | 0.15 | 29.7 |
| SA120615-H | B | 5000 | 12 | 0.14 | 1.68 | 23.3 | 39.6 | 6.11 | 0.24 | 35.7 |
| SA120615-S | B | 5500 | 12 | 0.18 | 2.16 | 25.9 | 44.0 | 7.15 | 0.28 | 37.9 |
