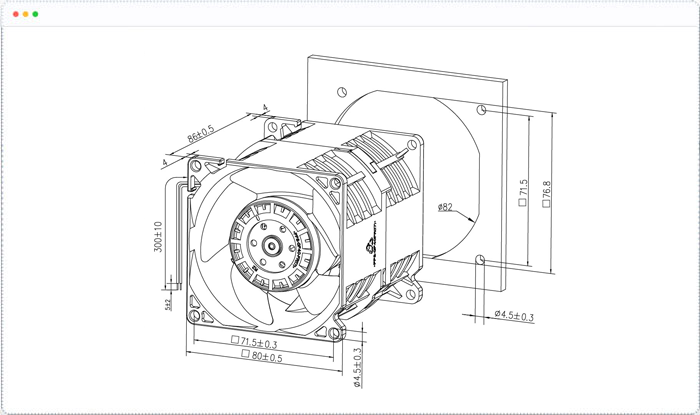

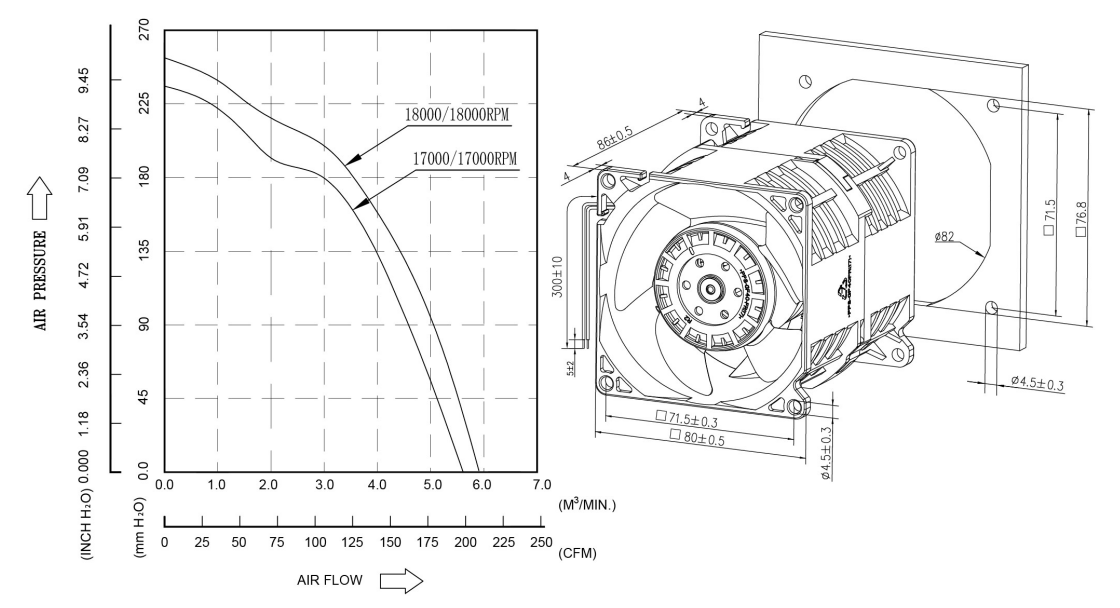

Overall Dimension:80x80x86mm
Material:Impeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires: UL 3265 AWG#22 or Equivalent
Impeller : 5 Blades Of Air Intake/4 Blades Of Air Outlet
Rotational Direction Ccw View From Inlet Fan Blade
Mass:488g

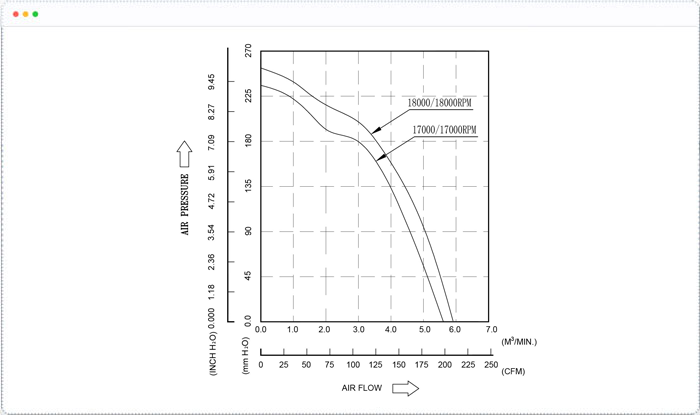

| 产品编号 | 轴承类型 | 转速 | 额定电压 | 额定电流 | 额定输入功率 | 最大流量 | 最大静压 | 噪声 | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |
| SA120886-S | B | 17000/17000 | 12 | 12.4 | 148.8 | 198.4 | 336.9 | 235.5 | 9.27 | 87.1 |
| SA480886-S | B | 18000/18000 | 48 | 3.15 | 151.2 | 209.0 | 354.8 | 252.7 | 9.95 | 89.0 |
