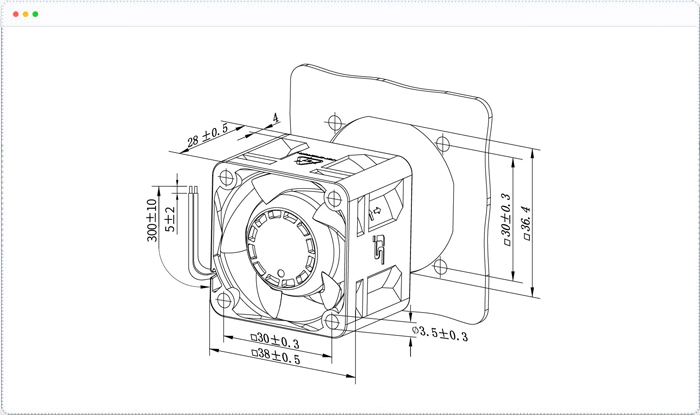

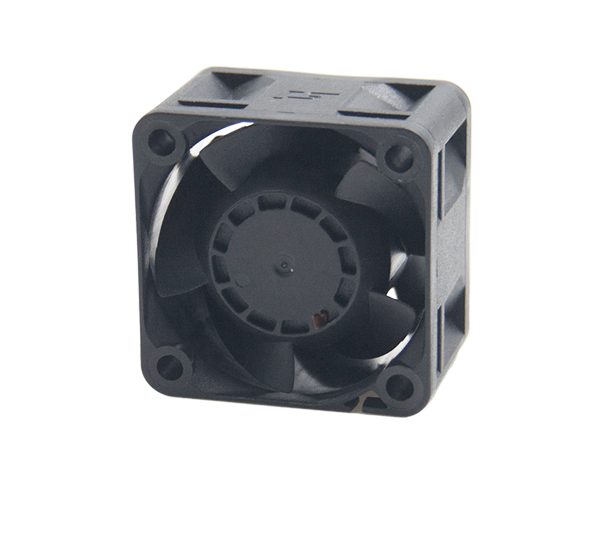

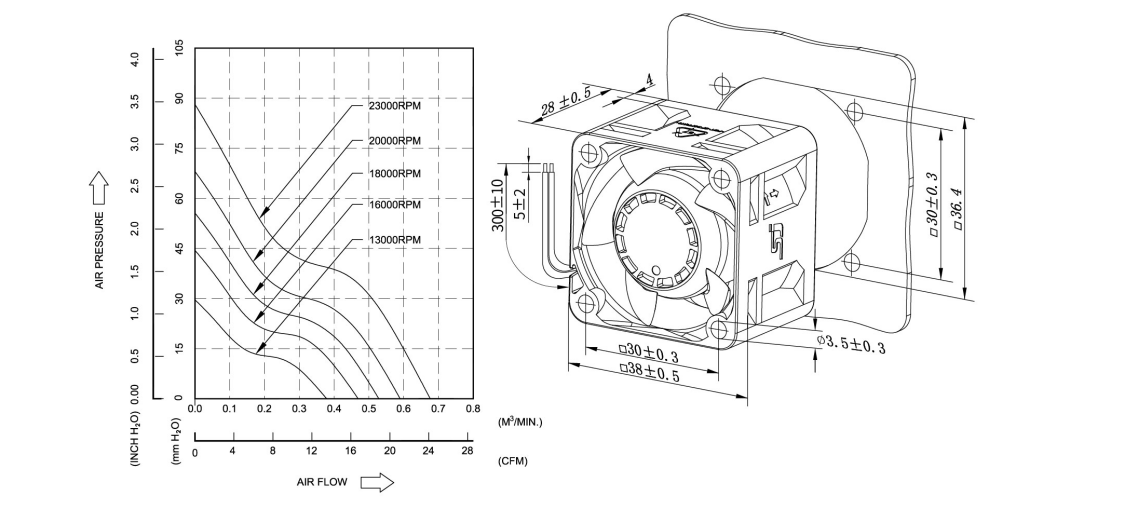

Overall Dimension:38x38x28mm
Material:Impeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires : UL 1061 AWG#26 or Equivalent
Impeller: 5 Blades
Rotational direction CCW view from impeller side
Mass:47g

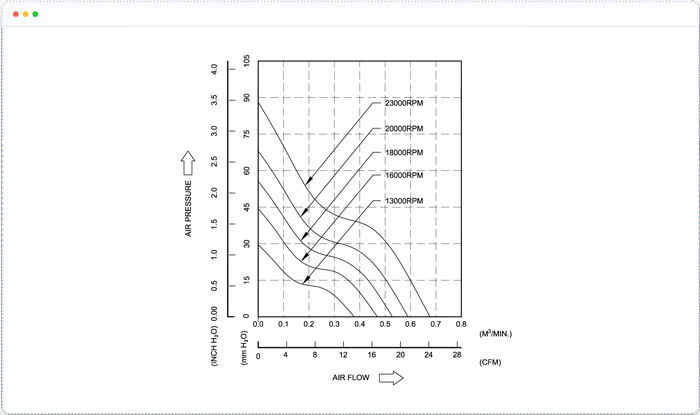

| 产品编号 | 轴承类型 | 转速 | 额定电压 | 额定电流 | 额定输入功率 | 最大流量 | 最大静压 | 噪声 | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |
| SA120328-L | B | 13000 | 12 | 0.25 | 3.00 | 13.5 | 23.0 | 29.6 | 1.17 | 50.8 |
| SA120328-M | B | 16000 | 12 | 0.35 | 4.20 | 16.8 | 28.4 | 44.4 | 1.75 | 55.1 |
| SA120328-H | B | 18000 | 12 | 0.45 | 5.40 | 18.9 | 32.1 | 55.6 | 2.19 | 57.3 |
| SA120328-U | B | 20000 | 12 | 0.60 | 7.20 | 21.1 | 35.8 | 68.0 | 2.68 | 59.8 |
| SA120328-S | B | 23000 | 12 | 0.90 | 10.8 | 24.2 | 41.0 | 88.1 | 3.47 | 62.5 |
