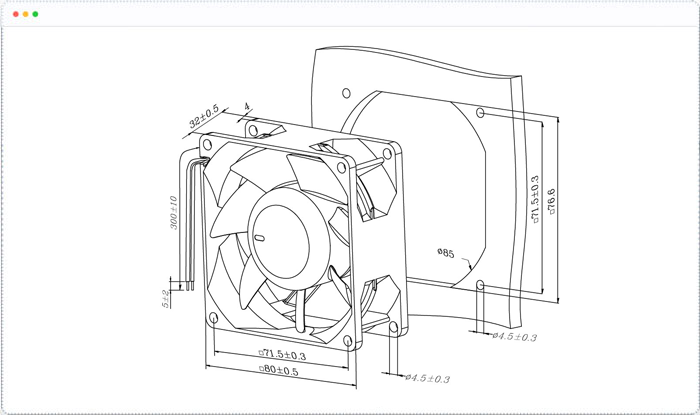

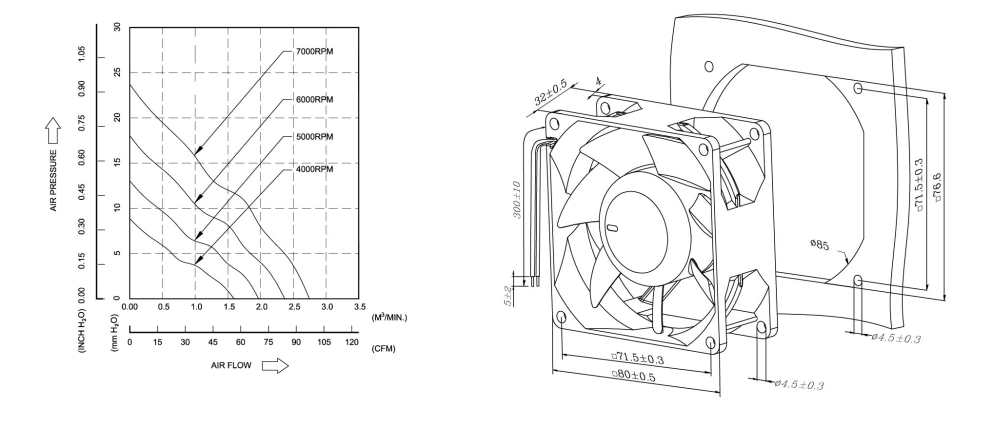

Overall Dimension:80x80x32mm
Material:Impeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires : UL 1007 AWG#24 or Equivalent
Impeller: 7 Blades
Rotational direction CCW view from impeller side
Mass:125g

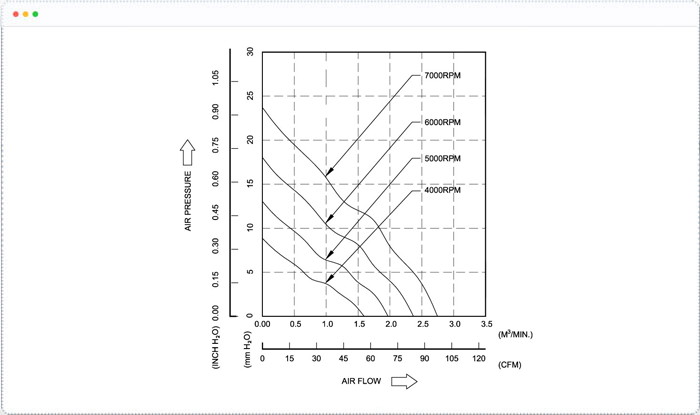

| 产品编号 | 轴承类型 | 转速 | 额定电压 | 额定电流 | 额定输入功率 | 最大流量 | 最大静压 | 噪声 | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |
| SA120832-M | B | 4000 | 12 | 0.37 | 4.44 | 56.4 | 95.8 | 8.85 | 0.35 | 42.8 |
| SA120832-H | B | 5000 | 12 | 0.61 | 7.32 | 69.7 | 118.3 | 13.0 | 0.51 | 48.5 |
| SA120832-U | B | 6000 | 12 | 0.97 | 11.6 | 83.8 | 142.3 | 18.0 | 0.71 | 53.3 |
| SA120832-S | B | 7000 | 12 | 1.40 | 16.8 | 97.1 | 164.9 | 23.7 | 0.93 | 56.4 |
| SA240832-M | B | 4000 | 24 | 0.15 | 3.60 | 56.4 | 95.8 | 8.85 | 0.35 | 42.8 |
| SA240832-H | B | 5000 | 24 | 0.25 | 6.00 | 69.7 | 118.3 | 13.0 | 0.51 | 48.5 |
| SA240832-U | B | 6000 | 24 | 0.38 | 9.12 | 83.8 | 142.3 | 18.0 | 0.71 | 53.3 |
| SA240832-S | B | 7000 | 24 | 0.59 | 14.2 | 97.1 | 164.9 | 23.7 | 0.93 | 56.4 |
| SA480832-M | B | 4000 | 48 | 0.10 | 4.80 | 56.4 | 95.8 | 8.85 | 0.35 | 42.8 |
| SA480832-H | B | 5000 | 48 | 0.14 | 6.72 | 69.7 | 118.3 | 13.0 | 0.51 | 48.5 |
| SA480832-U | B | 6000 | 48 | 0.21 | 10.1 | 83.8 | 142.3 | 18.0 | 0.71 | 53.3 |
| SA480832-S | B | 7000 | 48 | 0.32 | 15.4 | 97.1 | 164.9 | 23.7 | 0.93 | 56.4 |
