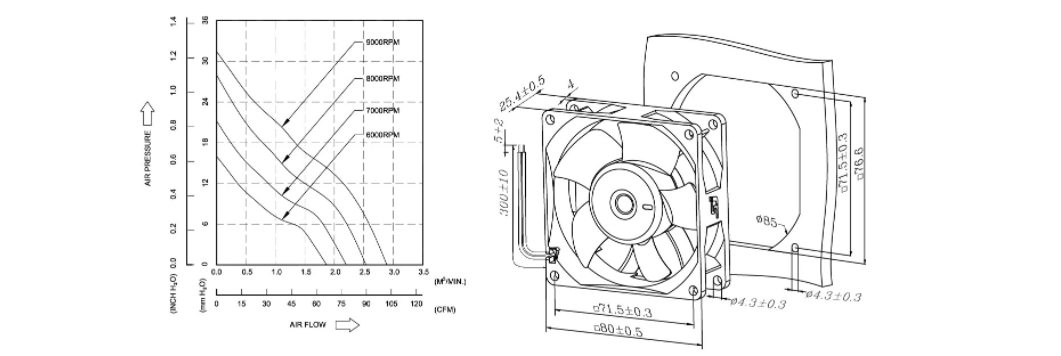

Overall Dimension:80x80x25mm
Material:Impeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires : UL 1007 AWG#24 or Equivalent
Impeller:5 Blades
Rotational direction CCW view from impeller side
Mass:98g
| 产品编号 | 轴承类型 | 转速 | 额定电压 | 额定电流 | 额定输入功率 | 最大流量 | 最大静压 | 噪声 | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |
| SA120825-L | B | 6000 | 12 | 0.48 | 5.76 | 66.1 | 112.2 | 16.0 | 0.63 | 50.4 |
| SA120825-M | B | 7000 | 12 | 0.64 | 7.68 | 78.0 | 132.4 | 21.2 | 0.84 | 54.5 |
| SA120825-H | B | 8000 | 12 | 0.92 | 11.0 | 89.8 | 152.4 | 28.0 | 1.10 | 57.5 |
| SA120825-U | B | 9000 | 12 | 1.35 | 16.2 | 102.3 | 173.8 | 31.5 | 1.24 | 60.5 |
| SA240825-L | B | 6000 | 24 | 0.21 | 5.04 | 66.1 | 112.2 | 16.0 | 0.63 | 50.4 |
| SA240825-M | B | 7000 | 24 | 0.32 | 7.68 | 78.0 | 132.4 | 21.2 | 0.84 | 54.5 |
| SA240825-H | B | 8000 | 24 | 0.46 | 11.0 | 89.8 | 152.4 | 28.0 | 1.10 | 57.5 |
| SA240825-U | B | 9000 | 24 | 0.68 | 16.3 | 102.3 | 173.8 | 31.5 | 1.24 | 60.5 |
| SA480825-L | B | 6000 | 48 | 0.12 | 5.76 | 66.1 | 112.2 | 16.0 | 0.63 | 50.4 |
| SA480825-M | B | 7000 | 48 | 0.17 | 8.16 | 78.0 | 132.4 | 21.2 | 0.84 | 54.5 |
| SA480825-H | B | 8000 | 48 | 0.24 | 11.5 | 89.8 | 152.4 | 28.0 | 1.10 | 57.5 |
| SA480825-U | B | 9000 | 48 | 0.33 | 15.8 | 102.3 | 173.7 | 31.5 | 1.24 | 60.5 |
