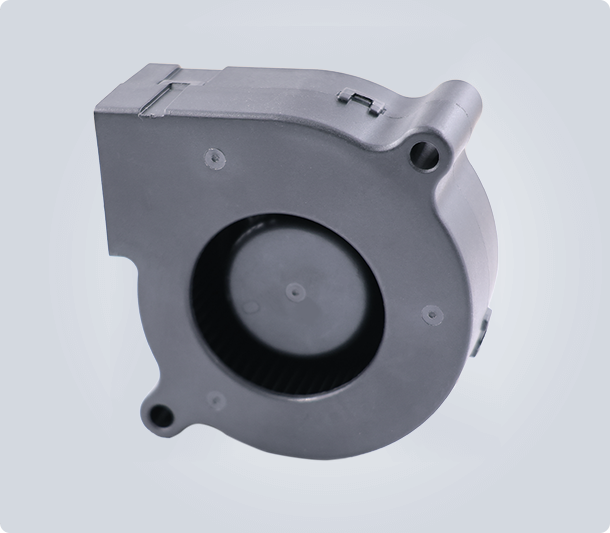

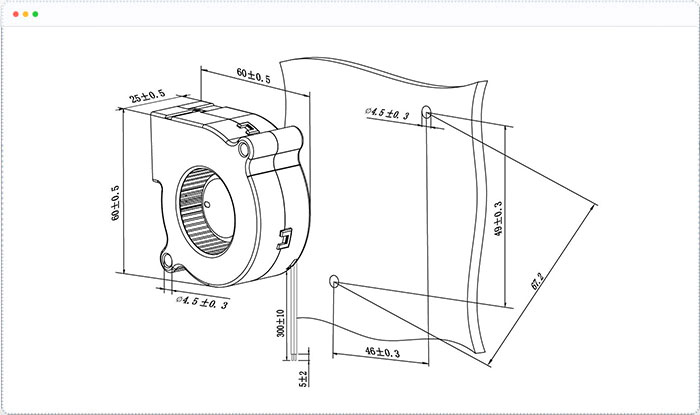

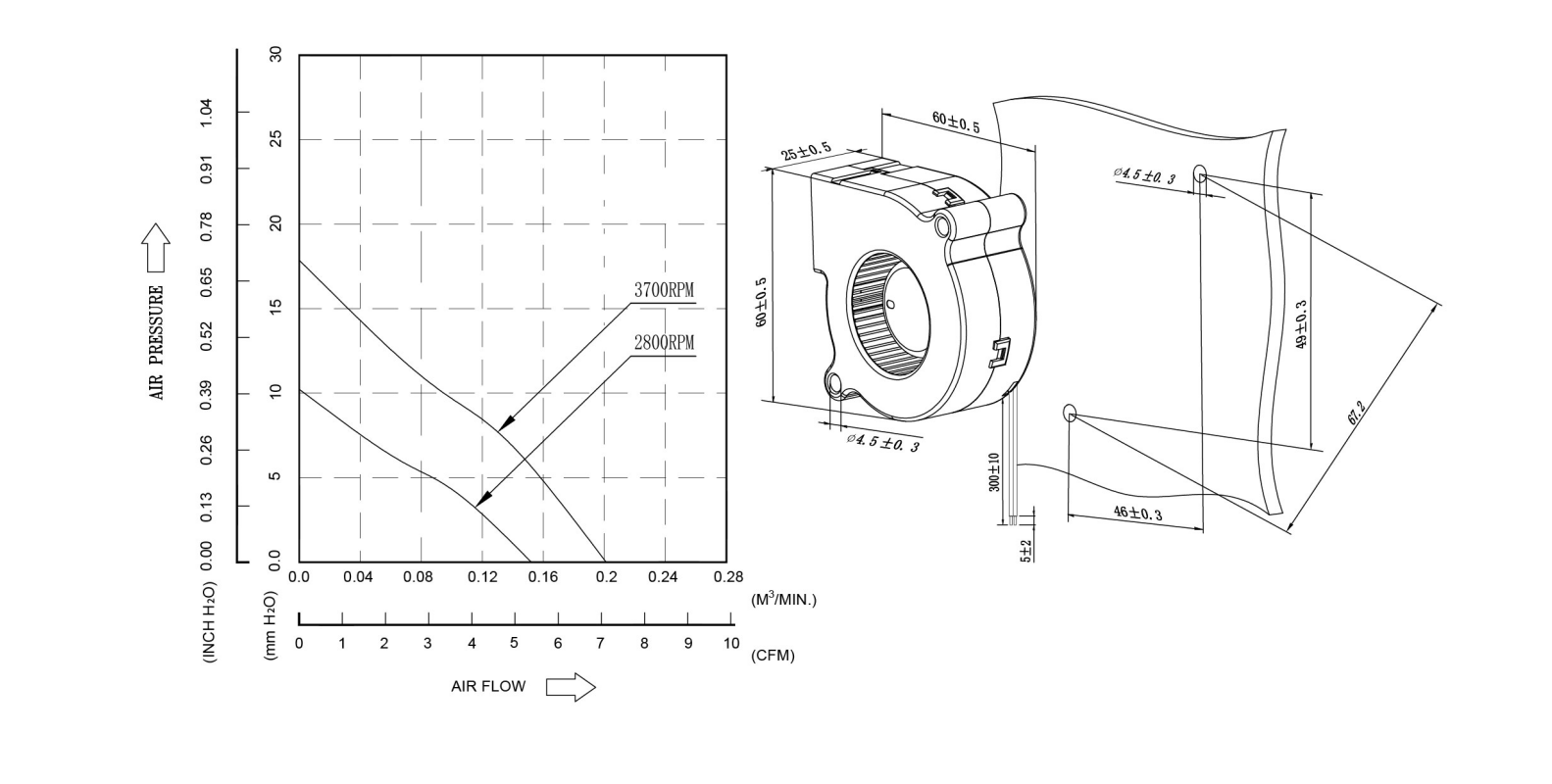

Overall Dimension:60x60x25mm
Material:Impeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires: UL 1061 AWG#26 or Equivalent
Impeller:57 Blades
Rotational direction CCW view from impeller side
Mass:50g

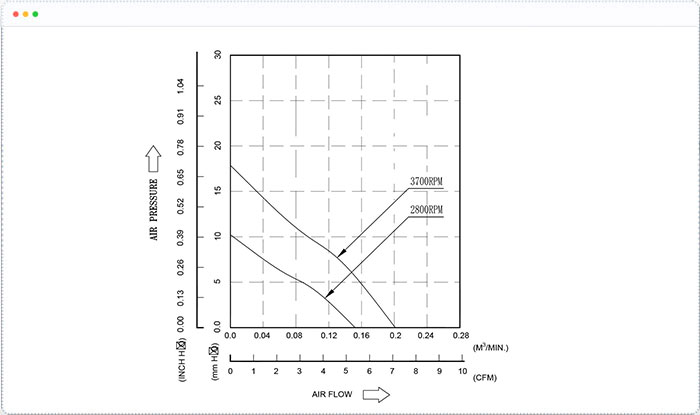

| 产品编号 | 轴承类型 | 转速 | 额定电压 | 额定电流 | 额定输入功率 | 最大流量 | 最大静压 | 噪声 | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |
| BA120625-L | R | 2800 | 12 | 0.08 | 0.96 | 5.38 | 9.14 | 9.48 | 0.37 | 28.7 |
| BA120625-S | R | 3700 | 12 | 0.16 | 1.92 | 7.11 | 12.0 | 16.6 | 0.65 | 36.5 |
