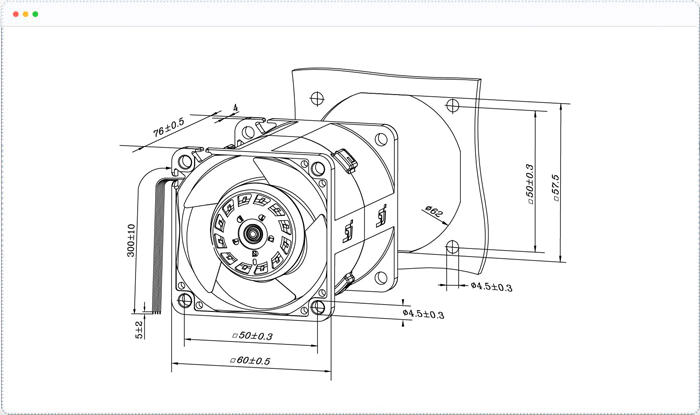

Overall Dimension:60x60x76mm
Material:Impeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires: UL 10368 AWG#24 or Equivalent
Impeller:5Blades/4 Blades
Rotational Direction Ccw View From Inlet Fan Blade
Mass:260g
| 产品编号 | 轴承类型 | 转速 | 额定电压 | 额定电流 | 额定输入功率 | 最大流量 | 最大静压 | 噪声 | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |
| SA120676-S | B | 21500/20700 | 12 | 5.00 | 60.0 | 84.7 | 143.8 | 233.2 | 9.18 | 80.8 |
| SA120676-S | B | 21500/20700 | 12 | 5.00 | 60.0 | 84.7 | 143.8 | 233.2 | 9.18 | 80.8 |
