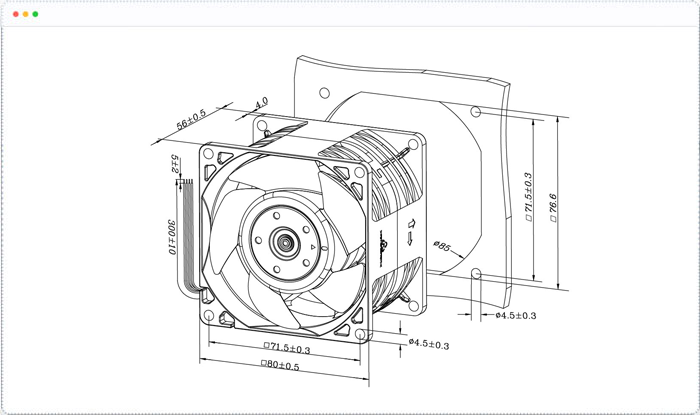

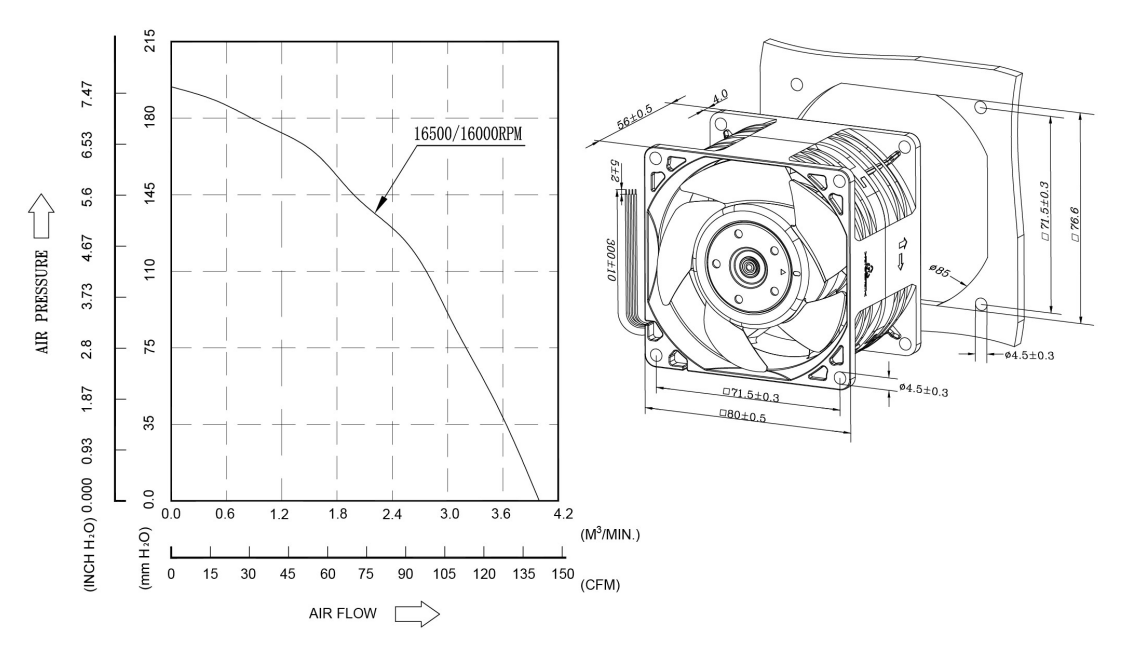

Overall Dimension:80x80x56mm
Material:Impeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires: UL 10368 AWG#24 or Equivalent
Impeller: 5 Blades / 4 Blades
Rotational Direction Ccw View From Inlet Fan Blade
Mass:310g
| 产品编号 | 轴承类型 | 转速 | 额定电压 | 额定电流 | 额定输入功率 | 最大流量 | 最大静压 | 噪声 | ||
| Product Number | B.S.R | RPM | VDC | Amp | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |

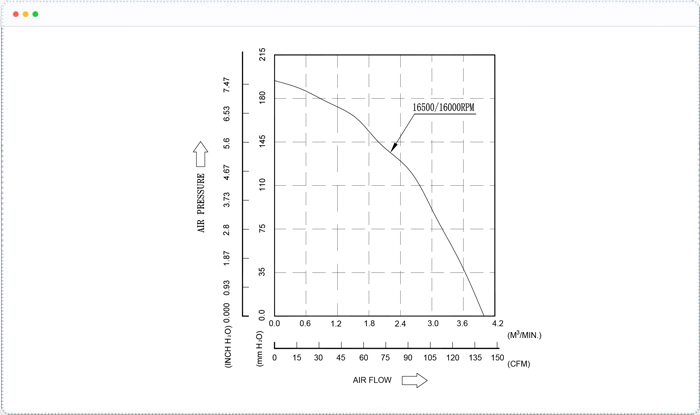

| SA120856-F | B | 16500/16000 | 12 | 4.60 | 55.2 | 140.7 | 238.9 | 188.0 | 7.40 | 81.0 |
