Material: Zinc alloy base, handle, shaft, carbon steel bolt
Surface treatment: white zinc plated steel bolt

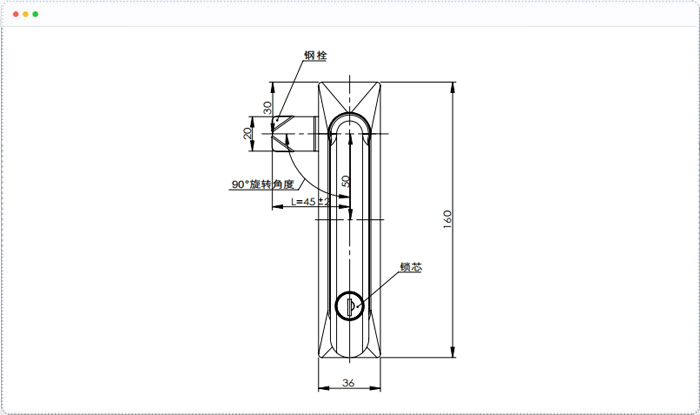

Structure description: The handle opens upwards and is rotated 90 ° to achieve opening
Note: Default key K140
Steel bolt material number: 2882451002
Handle bearing tension value: ≤ 390N
Handle carrying torque value: ≤ 12N. m
Maximum static load: 300N
