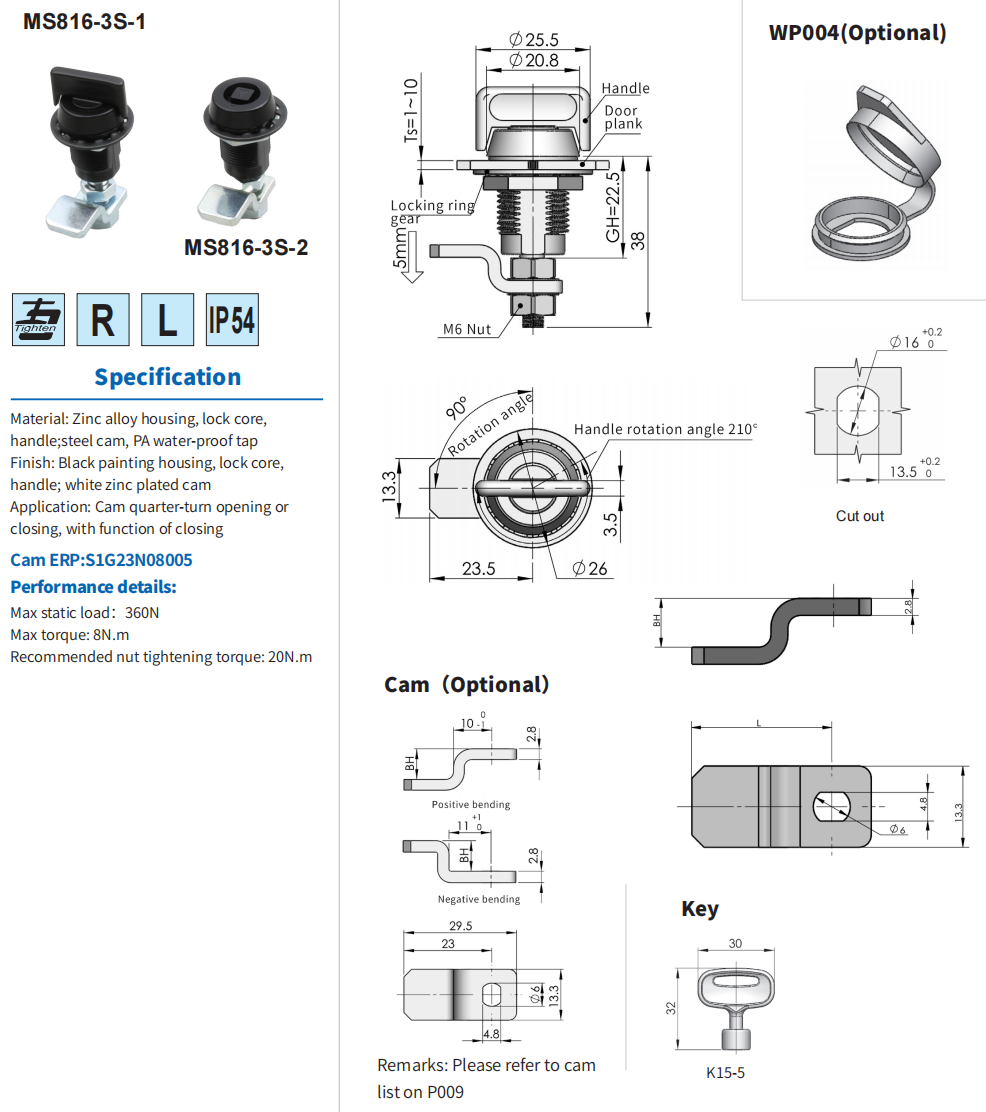

MS816-3S-1 Cam latches

Specification

Material: zinc alloy basing,handle carbon steel cam, PA waterproof(cover)

Surface: Black spray painting housing, lock core,handle, white zinc plated cam

Structure description: Rotate the cam 90° to open and close the door

Cam is with compression function.

Notes:

Maximum Static Load: 360N

Maximum input torque: 8N.m

Fixing nut recommend tighten torque: 20N.m
