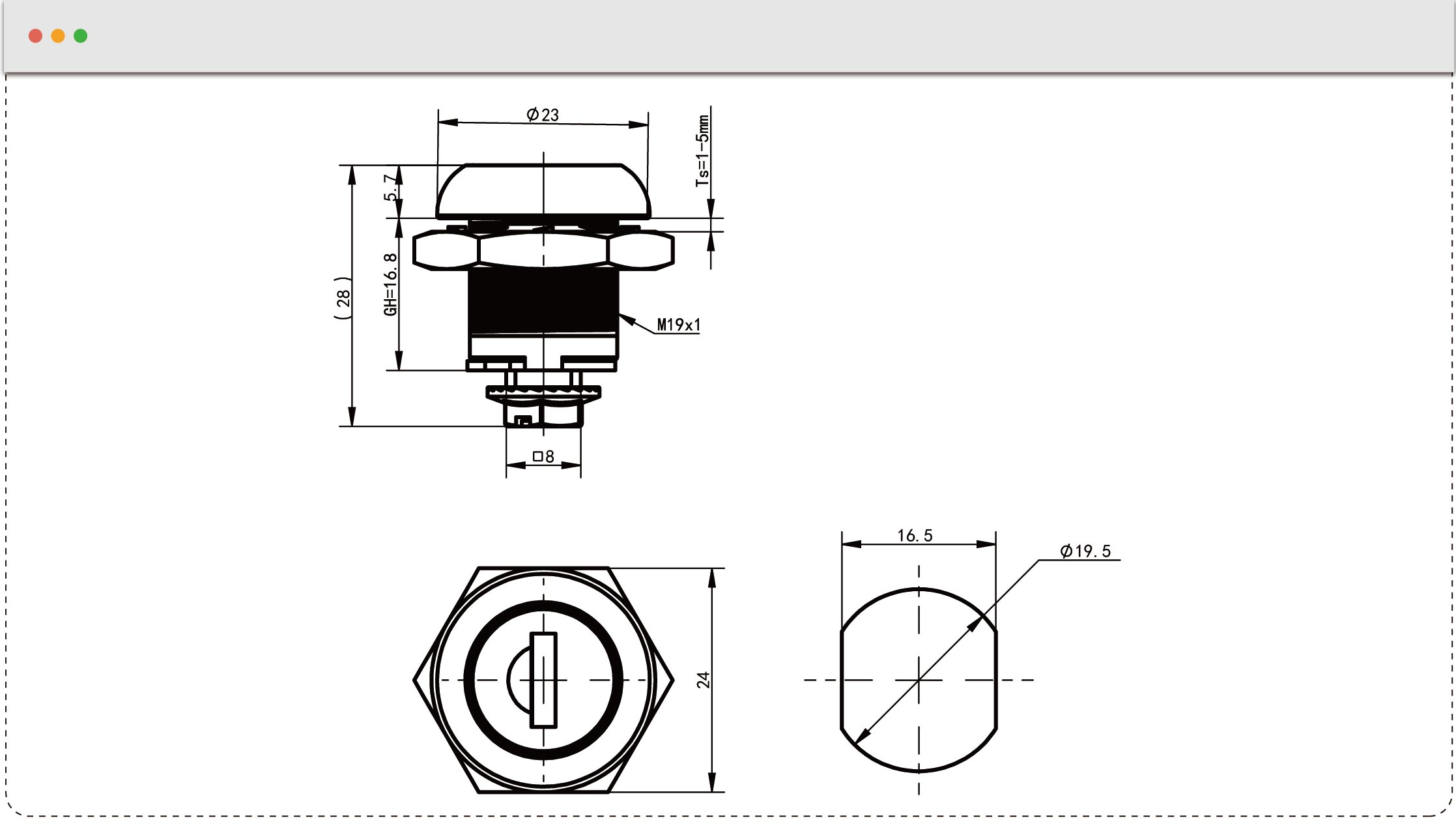

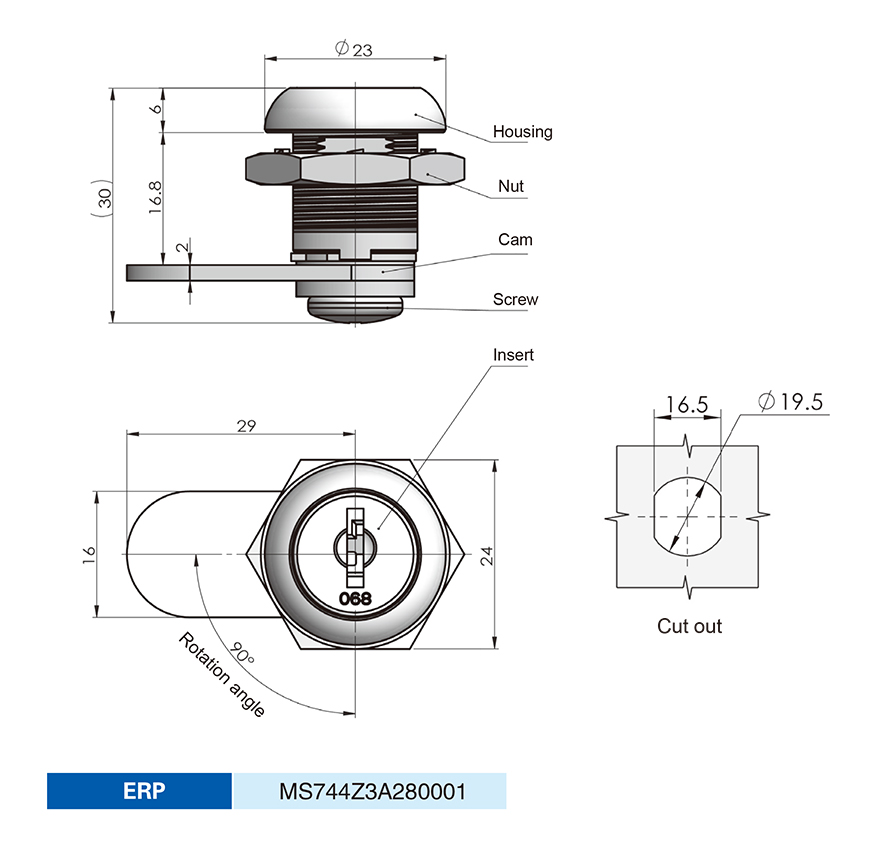

MS744-3 Cam latches

Cam latches(Rotary latch)

Specification

Material: Zinc alloy latch body

Surface: White zinc plated latch body housing

Structure description: Rotate the lock core 90° to open

and close the door

Notes:

Cam loading:140N

Housing fixing nut recommend install torque: 20N.m

Service life: 5000times

Application: Power industry, communication industry,etc.
