MS816-4B Cam latches

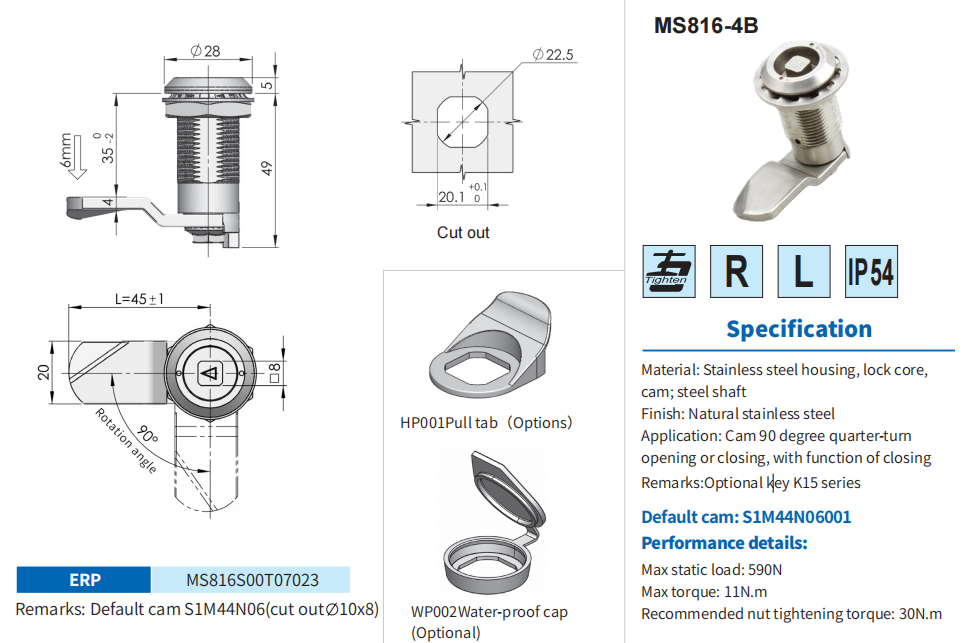

Specification

Material: Stainless steel housing,lock core, cam carbon steel shaft

Surface: Stainless steel original color

Structure description: Rotate the cam 90° to openand close the door.

Cam is with compression function.

Default key: K15 series

Protection level: lP54

Notes:

Maximum Static Load: 590N

Maximum input torque: 11N.m

Fixing nut recommend tighten torque: 30N.m
