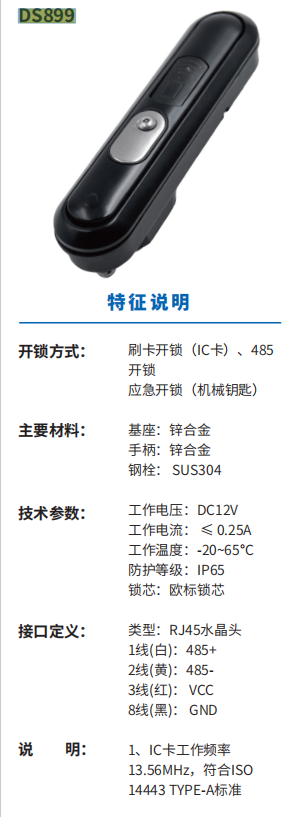

DS899

Unlocking methods: swipe card unlocking (IC card), 485 unlocking, emergency unlocking (mechanical key)

Main materials: base: zinc alloy, handle: zinc alloy, steel bolt: SUS304

Technical parameters: working voltage: DC12V, working current: ≤ 0.25A, working temperature: -20~65 ℃, protection level: IP65, lock core: European standard lock core

Interface definition: Type: RJ45 crystal head, 1-wire (white): 485+, 2-wire (yellow): 485-, 3-wire (red): VCC, 8-wire (black): GND

Explanation: 1 IC card operating frequency; 13.56MHz, compliant with ISO; 14443 TYPE-A standard
