MS734
Shengjiu Group

MS734

Product description

Material: Zinc alloy base, lock core, carbon steel bolt

Surface treatment: Bright chrome plated base, lock core, white zinc plated steel bolt

Structure description: Rotate the handle 90 ° to achieve opening or locking, with locking function


performance parameter

Maximum static load: 270 N

Maximum input torque: 8 N.m

Recommended tightening torque for fixing nuts: 20N.m


Note: K15-10 key optional

Steel bolt material number: S1B45Y00002

Technical Parameters

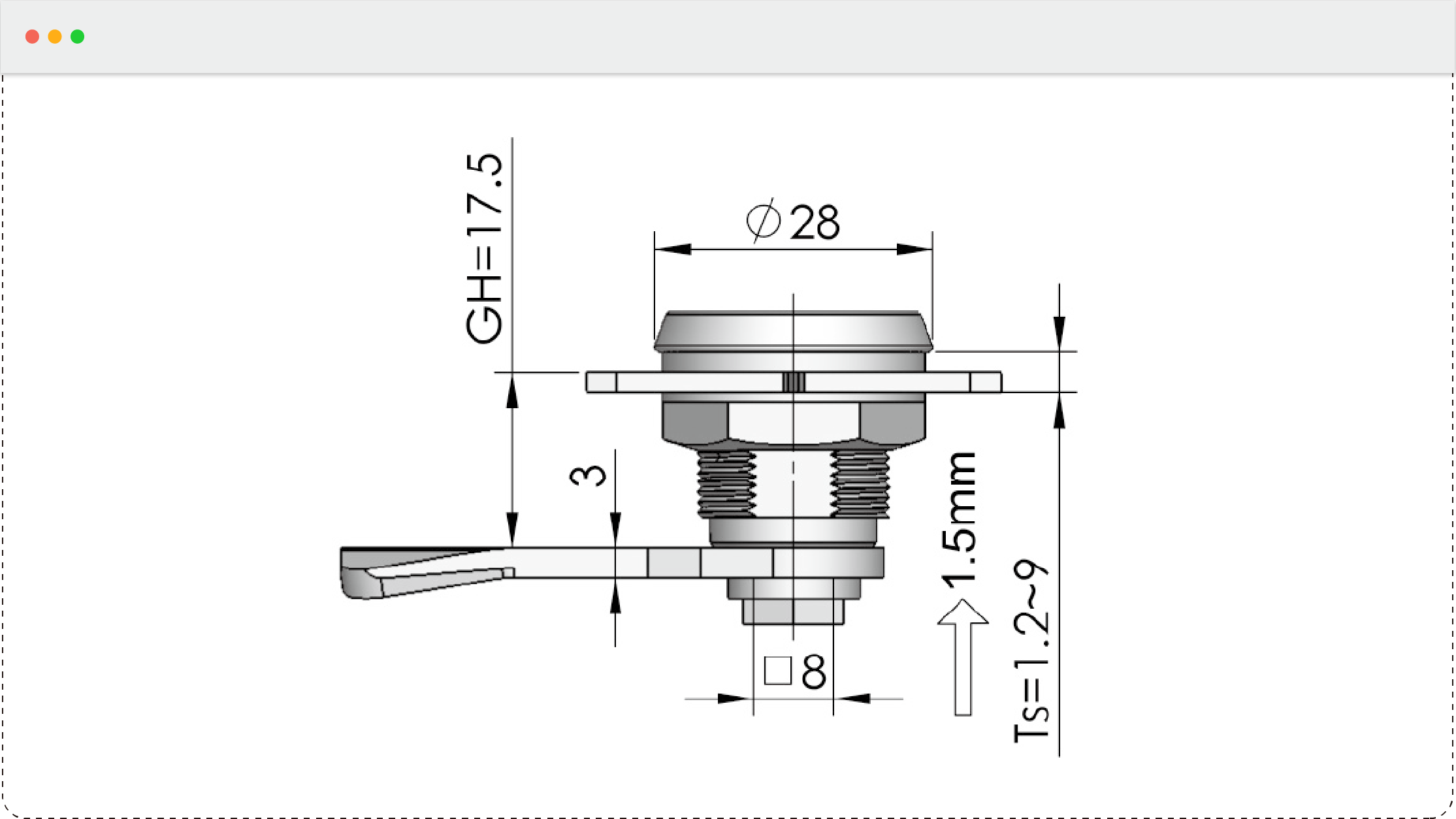

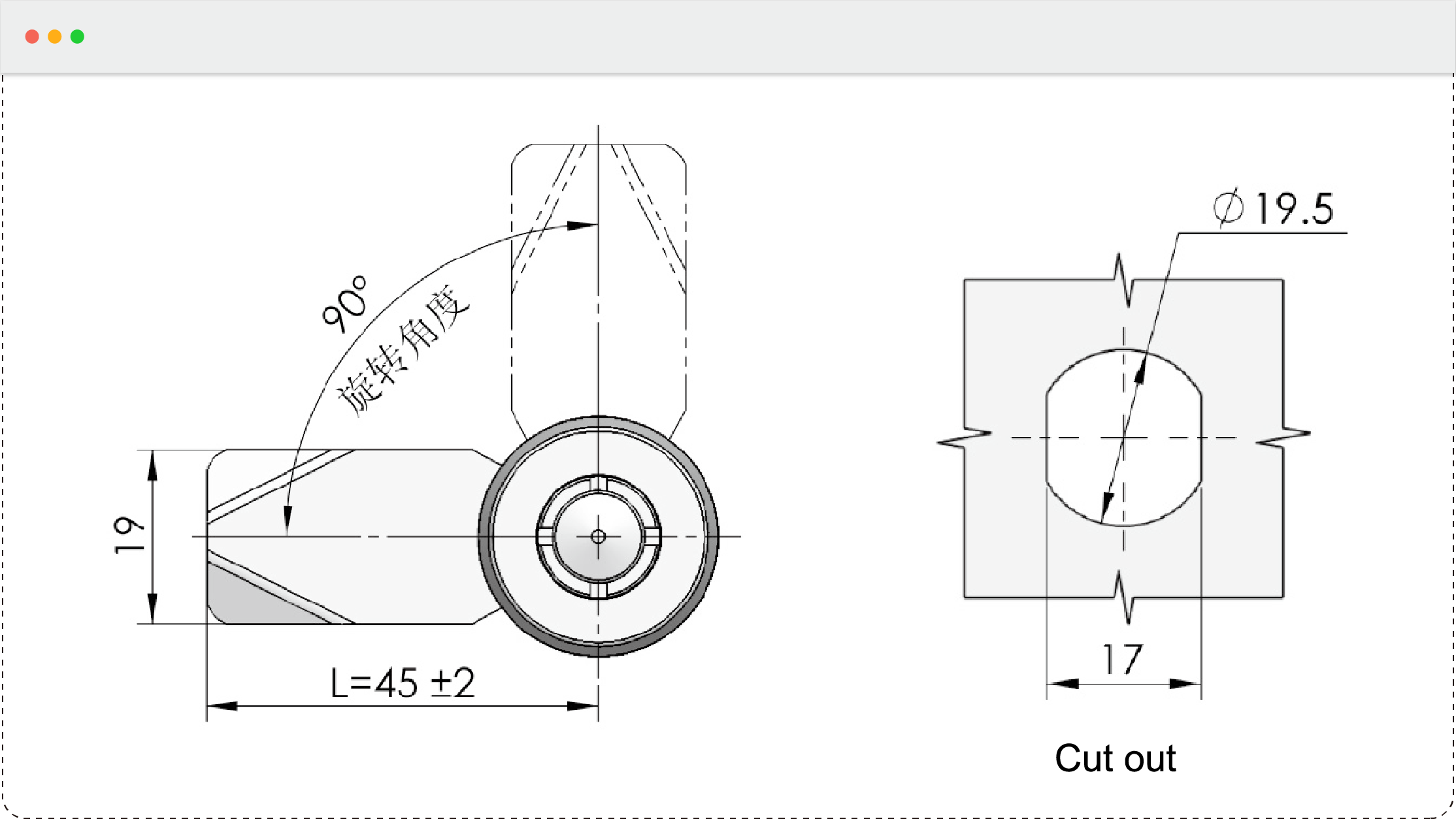

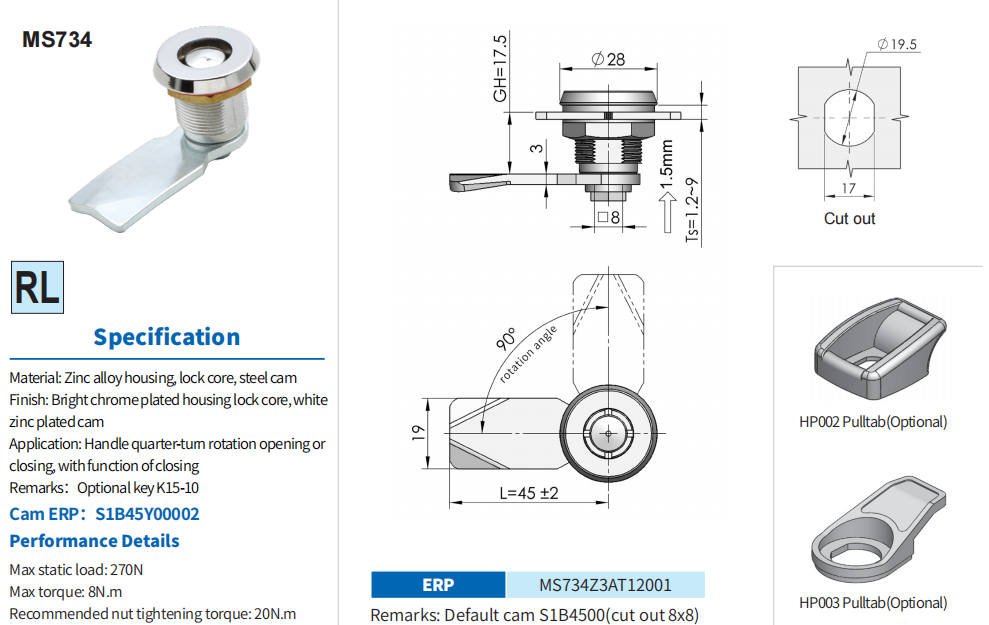

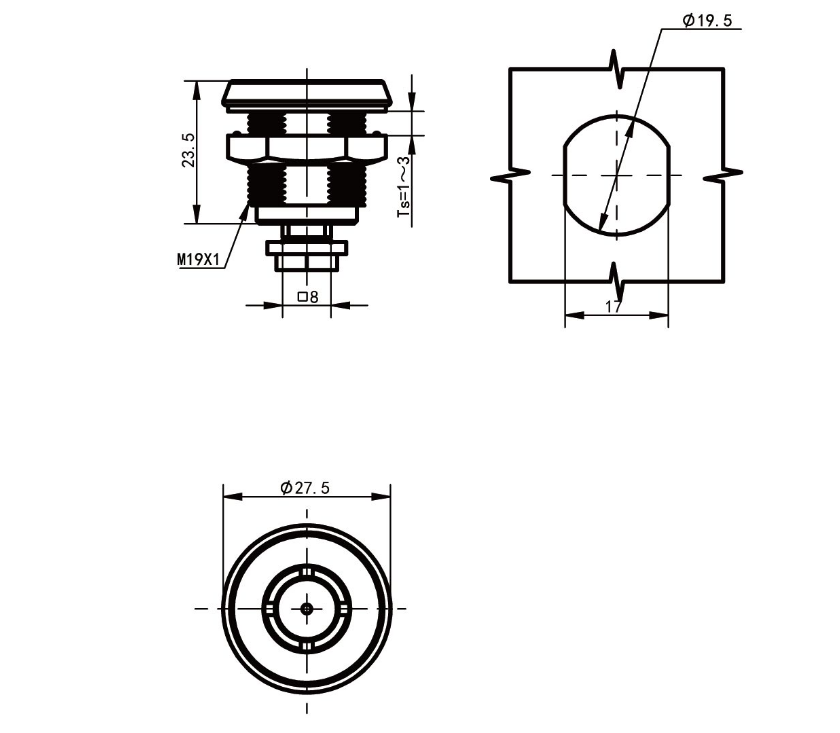

Drawing information
