MS842
Shengjiu Group

MS842

Product description

Material: Zinc alloy handle and base, carbon steel bolt, stainless steel lock plate

Surface treatment: spray painted (black hemp surface) handle and base, coated with white zinc steel bolt

Structure description: Rotate the handle 90 ° to achieve opening or locking, and can be equipped with a padlock


Steel bolt material number:

S1B45Y07002 (iron plated with white zinc)

S1B45Y07022 (stainless steel)


Performance parameters of zinc alloy material

Maximum static load: 270N

Recommended tightening torque for fixing nuts: 20N.m

Maximum input torque: 25N.m

Technical Parameters

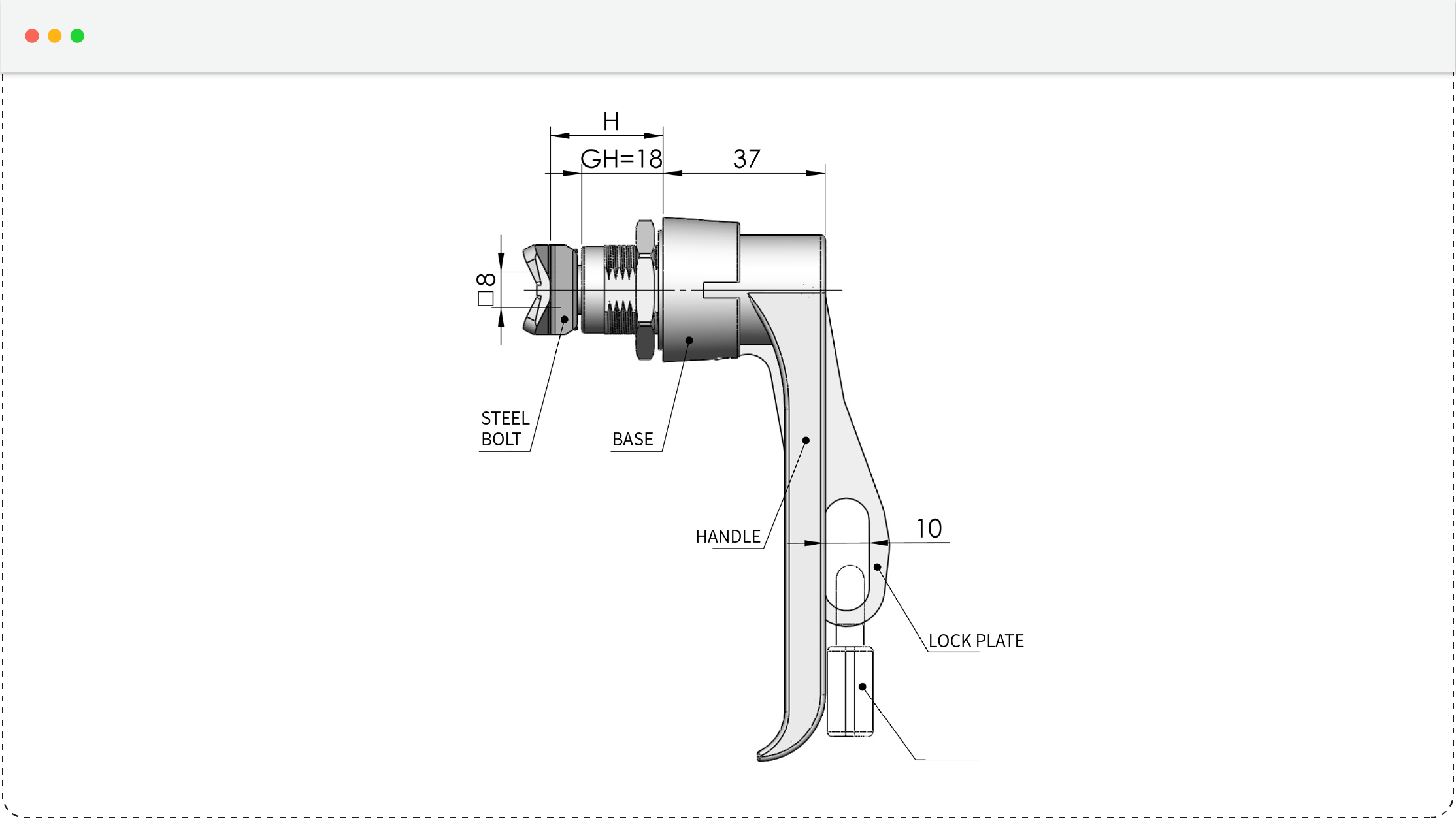

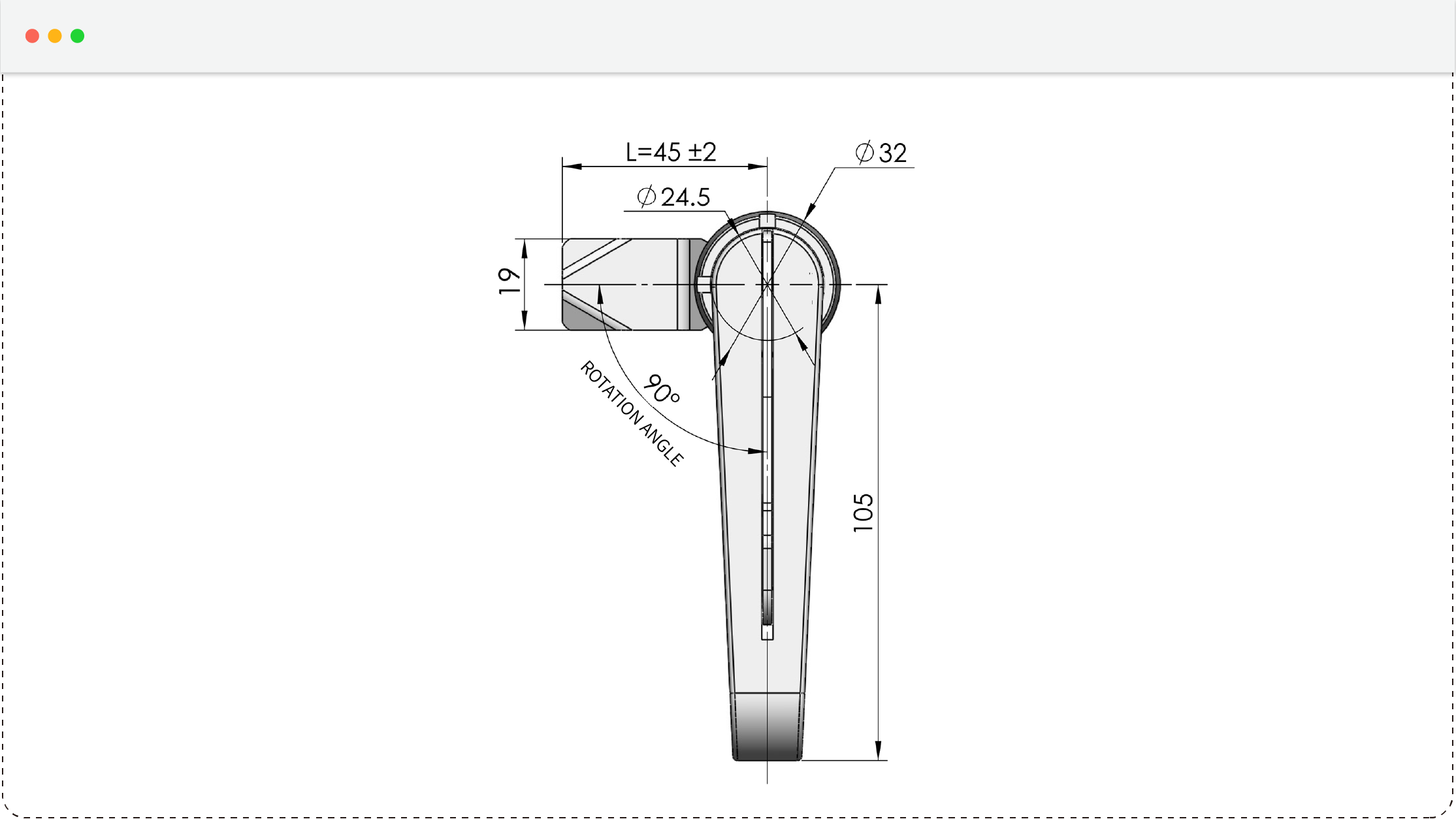

Drawing information
Application solution
    No Data
