Type of hinge:Concealed hinge, Left and right Not universal

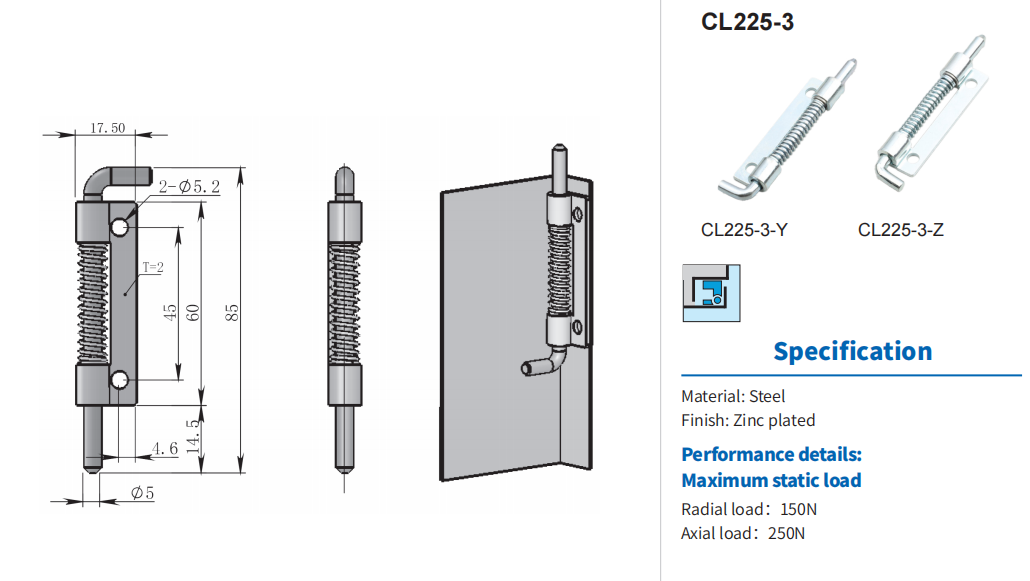

Specification
Material: Carbon steel Hinge page and Shaft, Stainless steel SpringSurface: Trivalent white zinc 48 plated
Performance parameter:
Maximum radial static load:150N
Maximum axial static load:250N

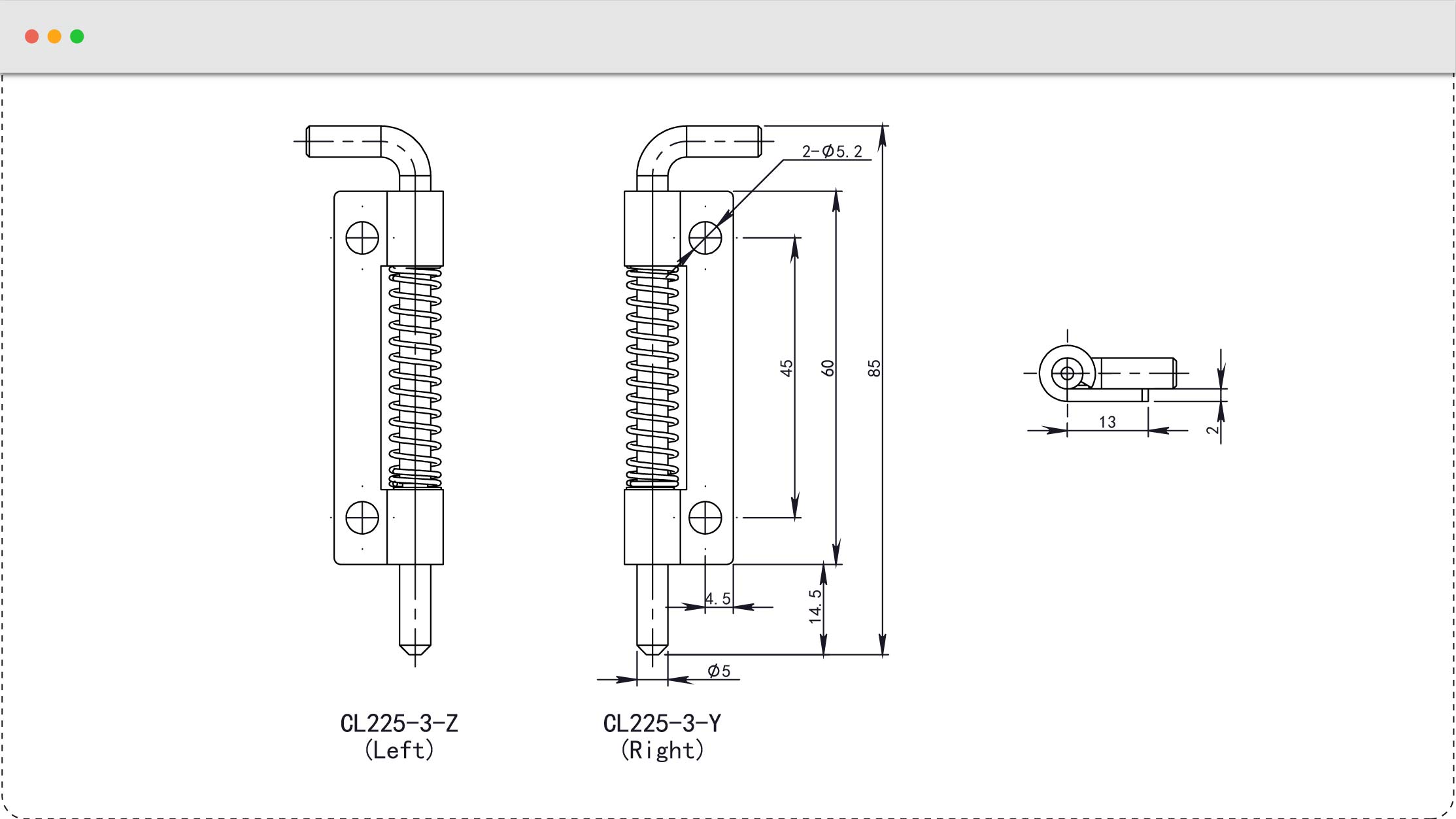

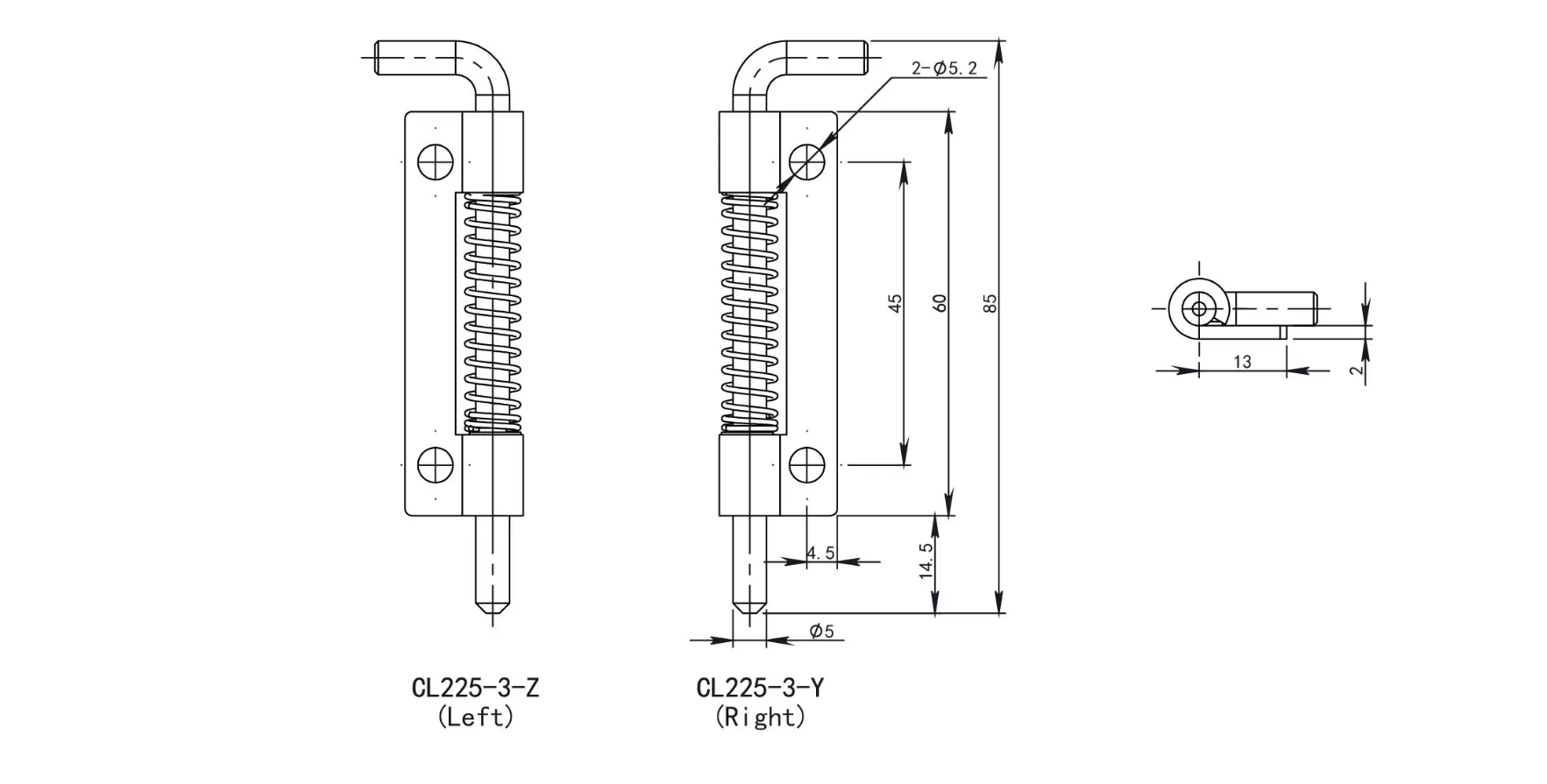

Refer to the installation diagram on the right for the installation method
