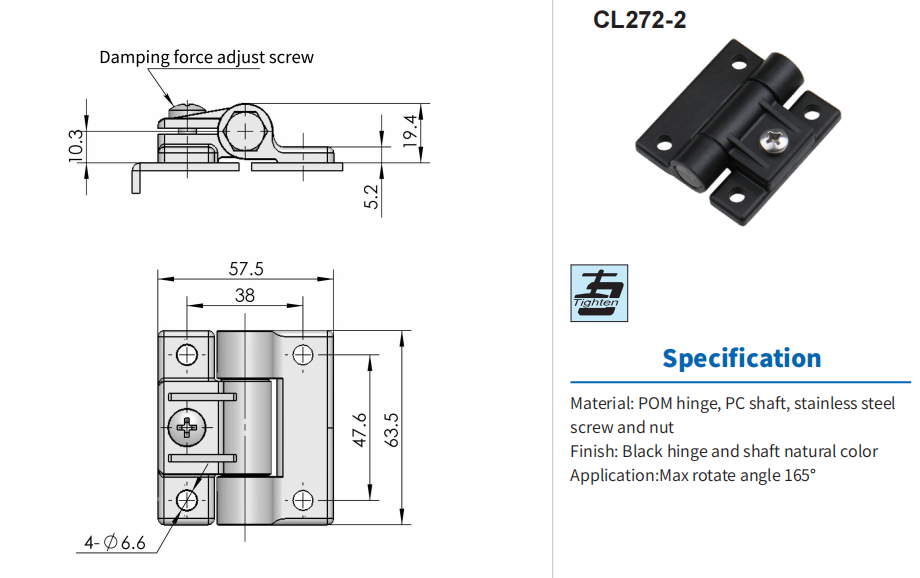

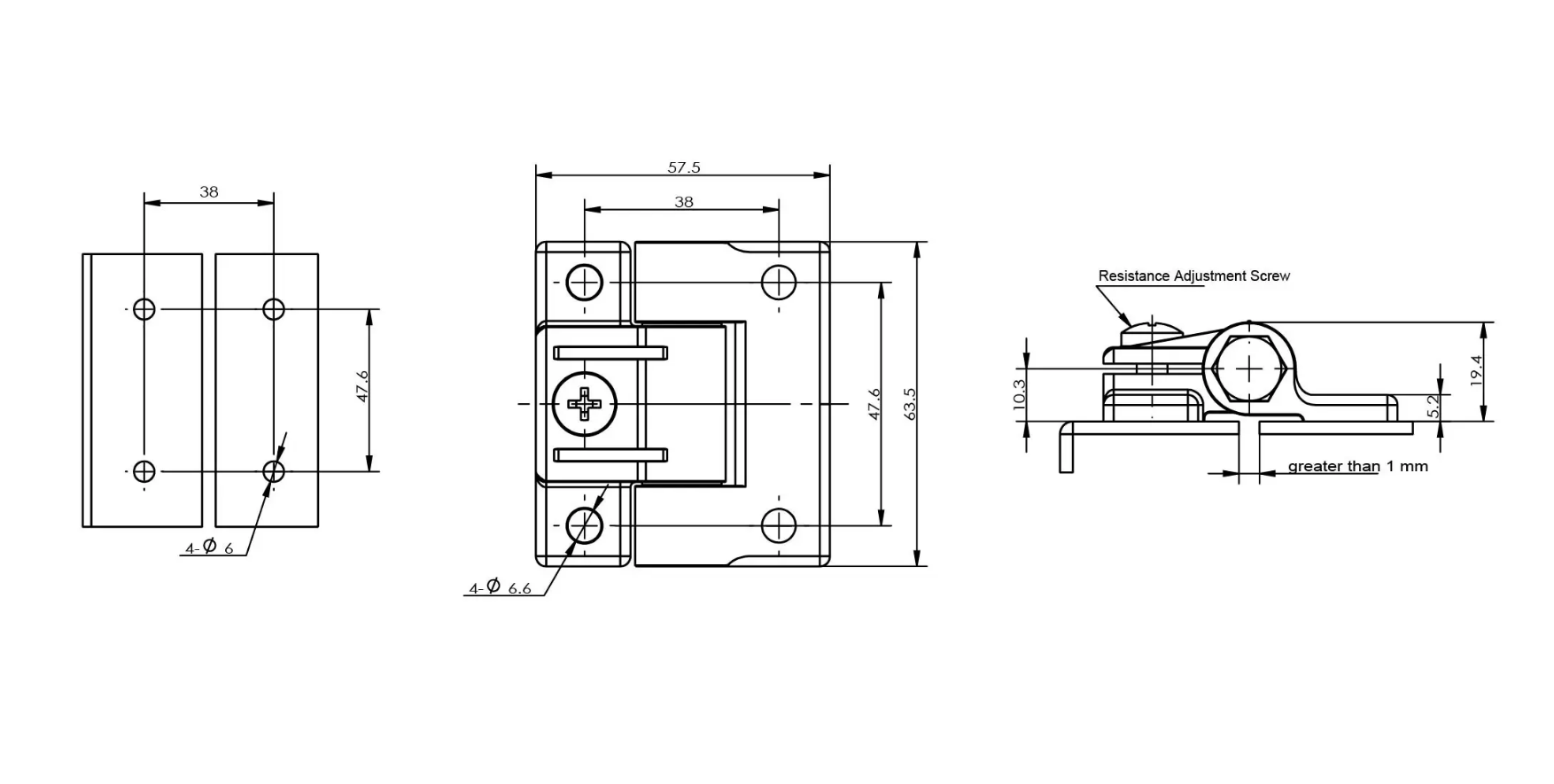

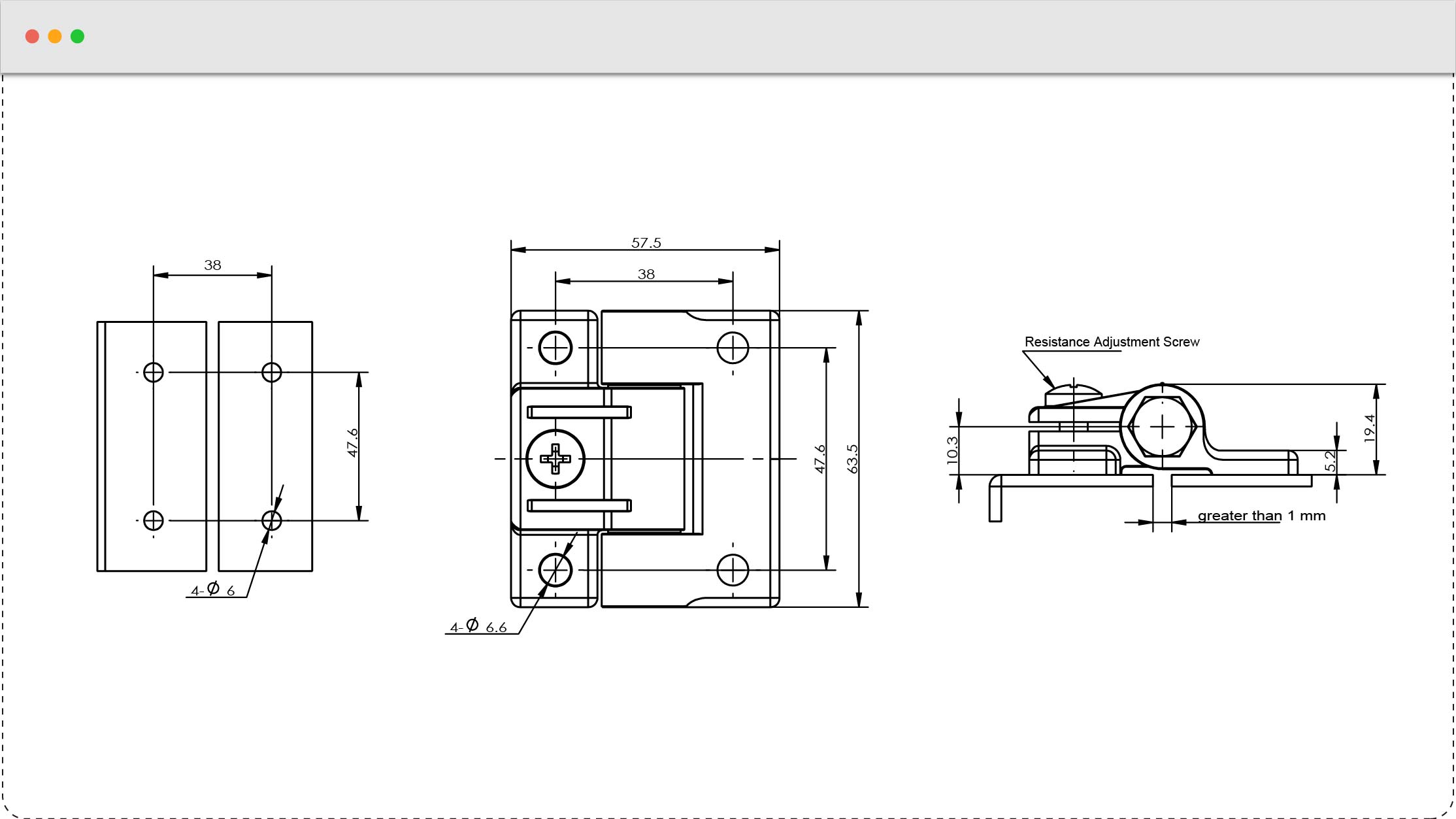

CL272-2 Hinges

Specification:

Material:Door part and Frame part are POM.Shaft is PC

Adjustment Screw and Nut are stainless steel

Surface:Door part and Frame part are black,Shaft iscolorless transparent, Adjustment Screw and Nut arestainless steel natural color

Structure description:Maximum rotation angle 165

Maximum axial static load:80N

Maximum radial static load:100N

Damping value adjustable range:0~2N.M
