A frequenc converter is a power control device that uses frequenc conversion technolog and microelectronics technolog to control AC motors b changing the motor operating frequenc.
Classiffied b input voltage level: According to input voltage level, low-voltage frequenc converters and high-voltage frequenc convertercan be divided. Common low-voltage frequenc converters in China include single-phase 220V frequenc converters, three-phase 220V frequenc converters, l-phase
380V frequenc converter.High votage frequenc converters commonl include 6 kV and 10 kV transform rClassififed b frequenc conversion method: AC-Ac frequenc converters and AC-Dc-Ac frequenc converters can be divi -classififed b thecharacteristics of DC power suppl : In AC-DC-AC frequenc converters, the characteristic of DC power suppl is divide into voltage t pefrequenc converters and current t pe frequenc converters during the process of converting the main circuit powerSuch as this, as a long-standing main channel service product o Sheng iu, its main application distribution is: AC/DC power suppl , DC/Dpower suppl, communication power suppl, module power suppl , primar power suppl module, switch power suppl, etc. (industrial
power
Shengjiu common fans introduction for inverter industry:

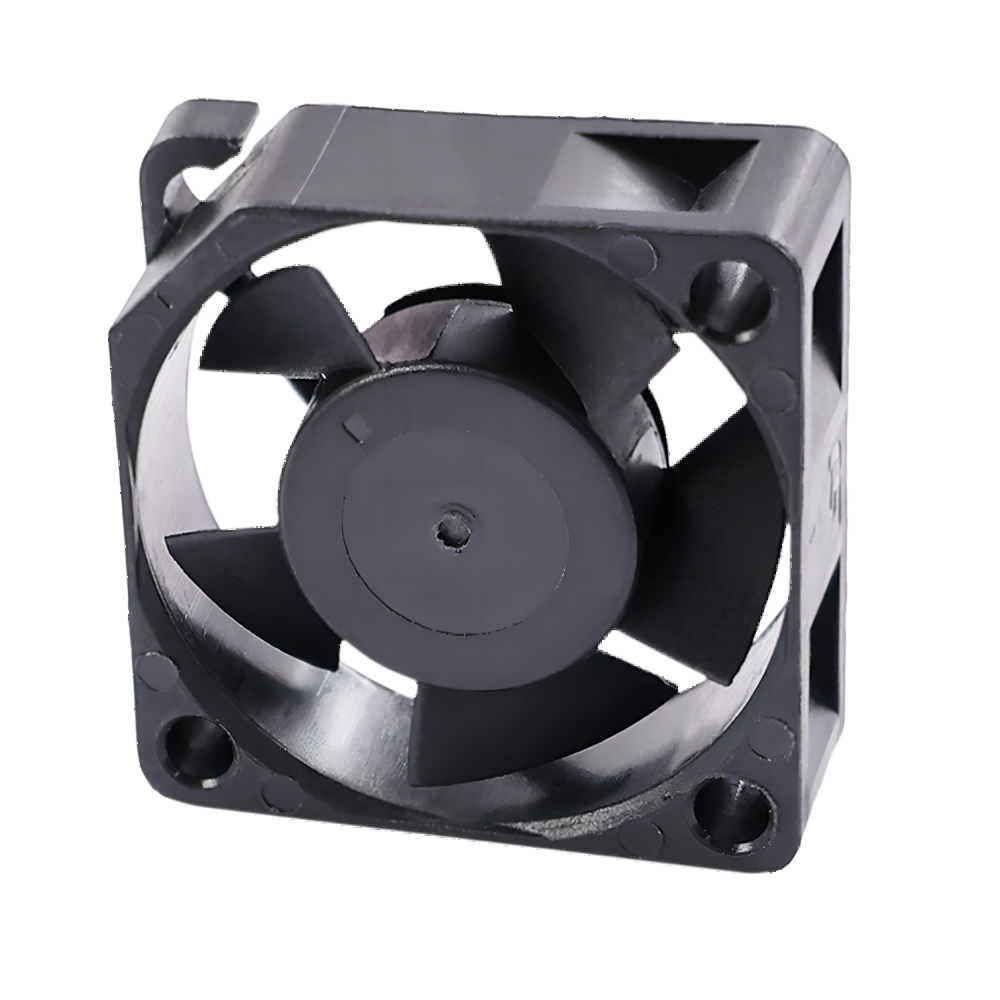

SA3010
Overall Dimension :30x30x10mm
Material:lmpeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires : UL 1061 AWG#28 or Equivalent
Impeller :5 Blades
Rotational direction CCW view from impeller side
Mass:9g

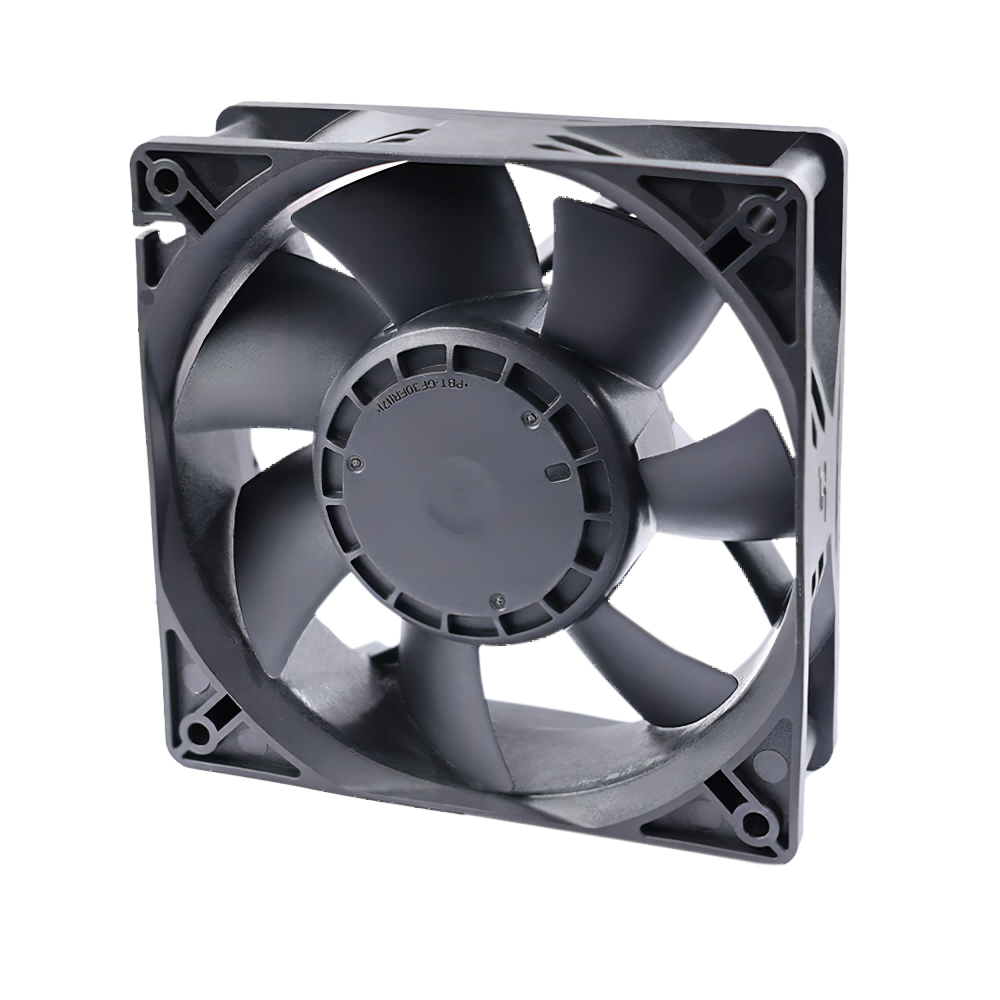

SF12038
Overall Dimension:120x120x38mm
Material:lmpeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires : UL 1007 AWG#24 or Equivalent
Impeller:7 Blades
Rotational direction CCW view from impeller side
Mass:300g

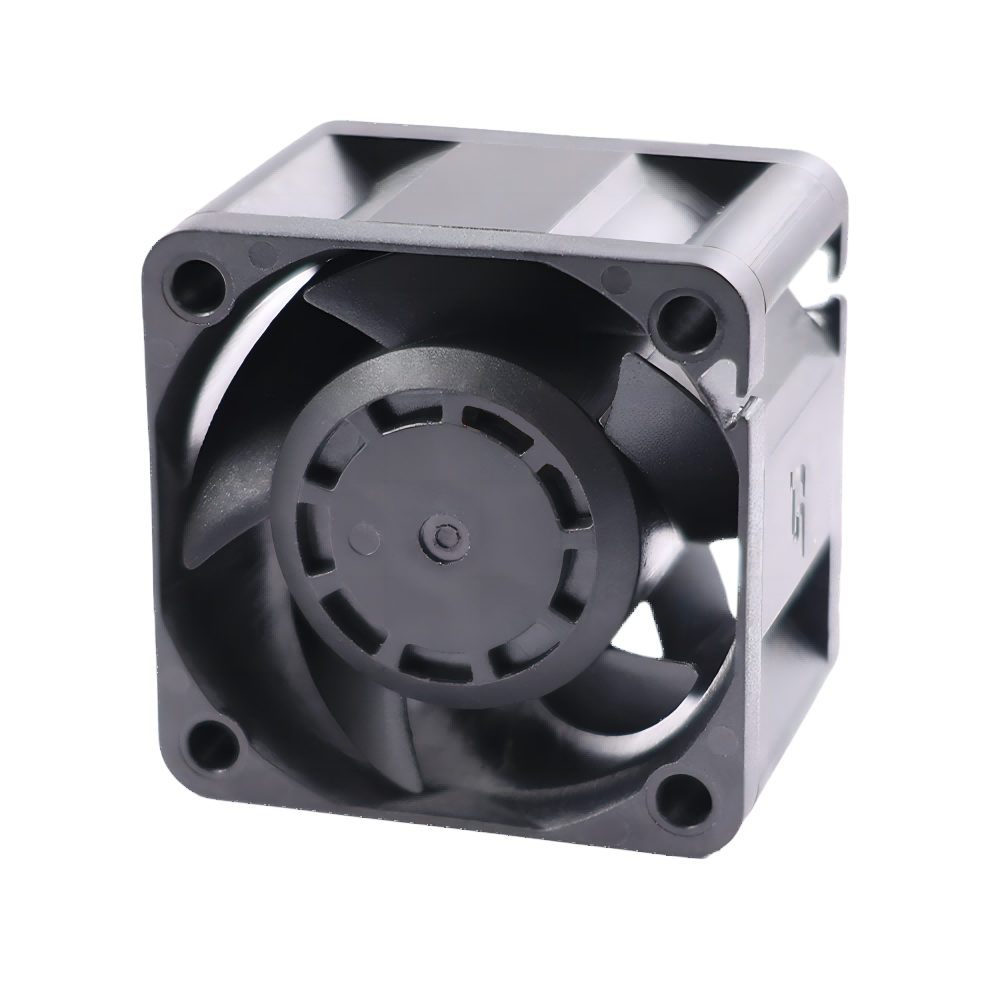

SD4028
Overall Dimension :40x40x28mm
Material:lmpeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires : UL 1061 AWG#26
lmpeller : 5 Blades
Rotational direction CCW view from impeller side
Mass:47g

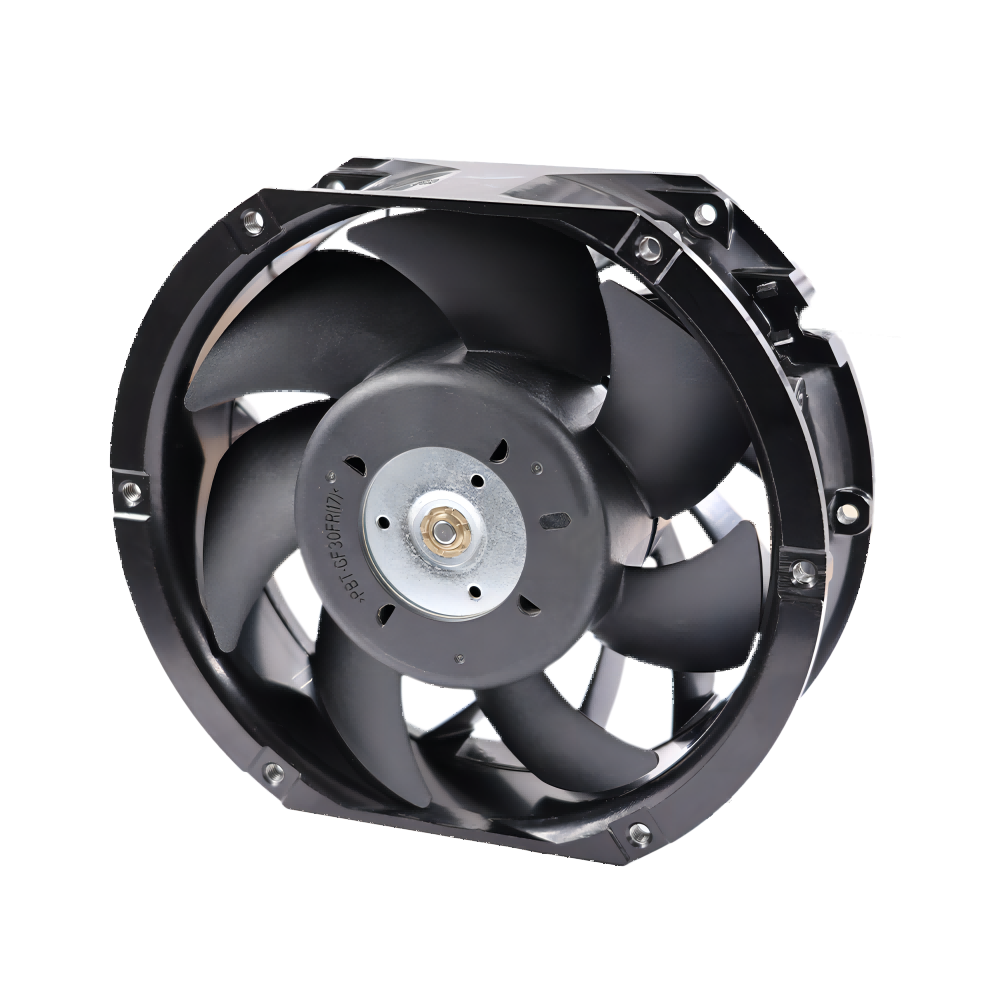

SC17251
Overall Dimension:172x150x5lmm
Material: lmpeller Plastic (Fire Rating UL94V-0)Frame Aluminium
Lead Wires : UL 1007 AWG#22 or Equivalent
Impeller:7 Blades
Rotational direction CCW view from impeller side
Mass:870g

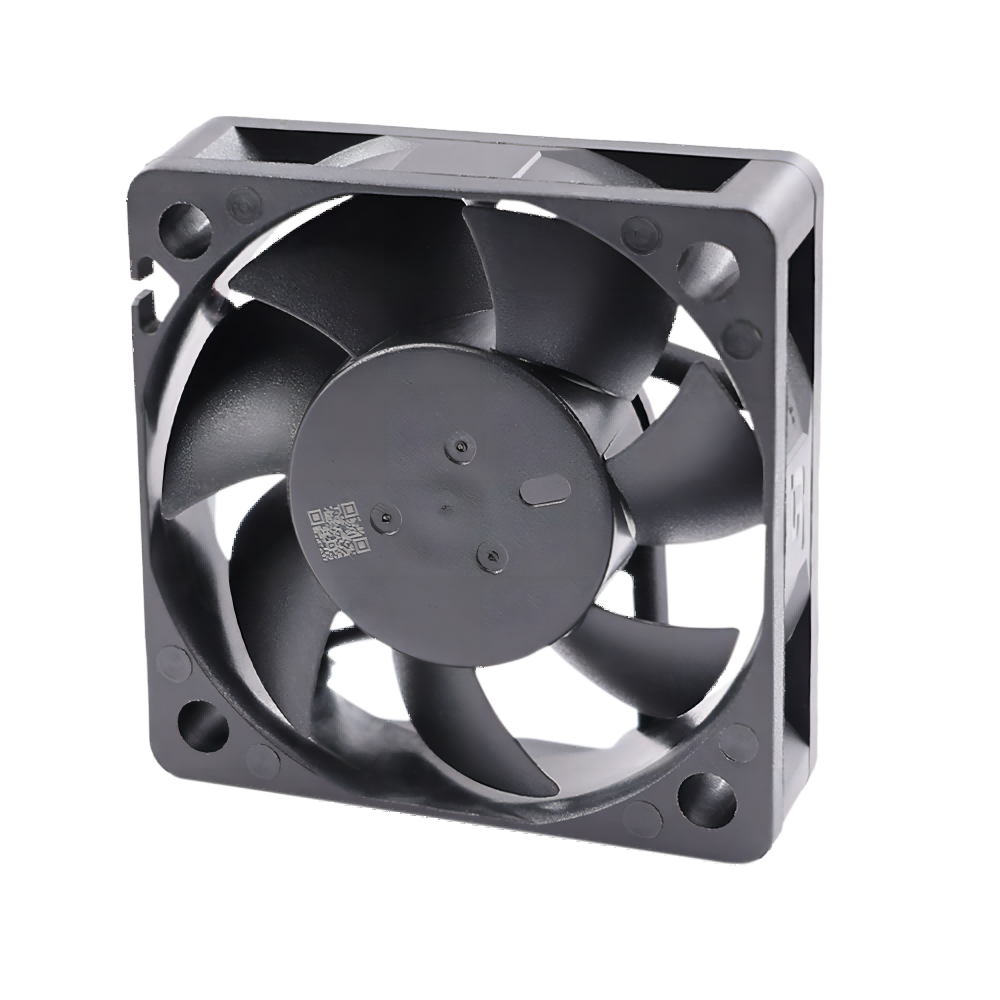

SA5015
Overall Dimensior 50x50x15mm
Material:lmpeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires :UL 1007 AWG#26 or Equivalent
lmpeller : 7 Blades
Rotational direction CCW view from impeller side
Mass:24g

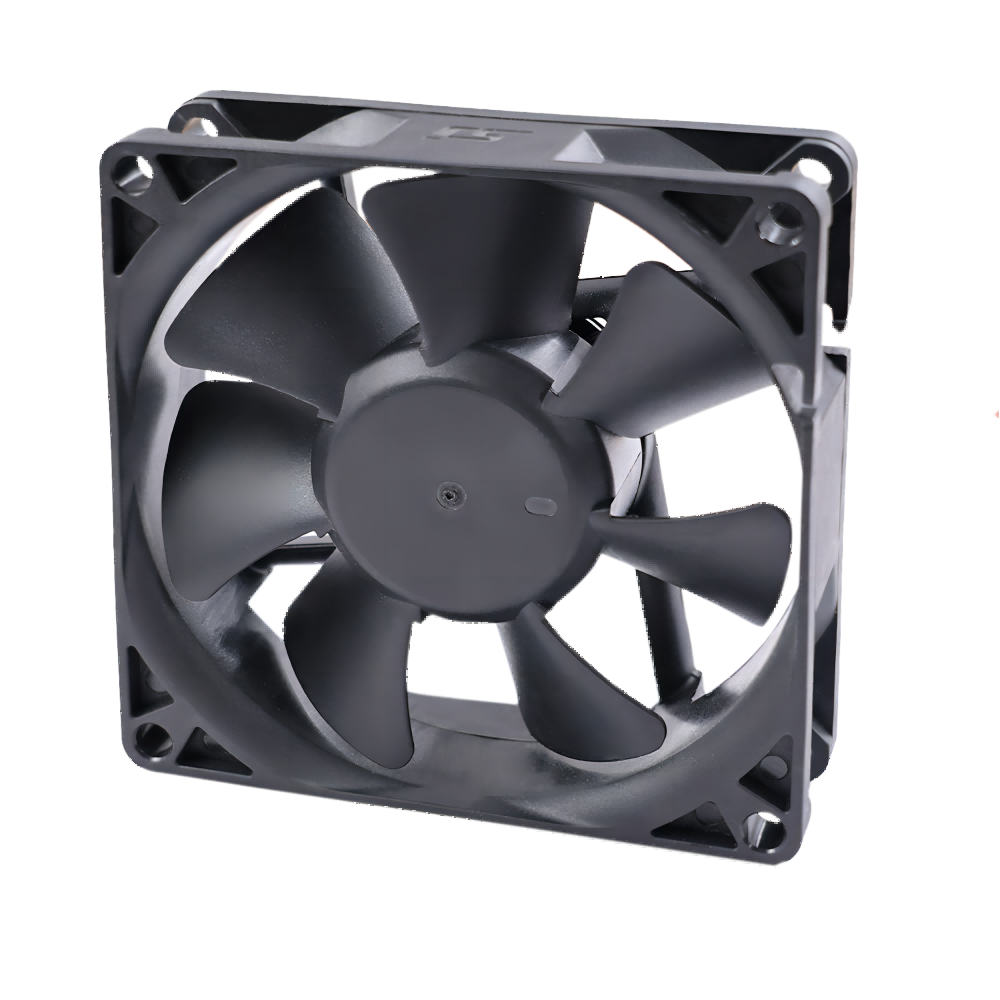

SB8025
Overall Dimension:80x80x25mm
Material:lmpeller&Frame Plastic(Fire Rating UL94V-0)
Lead Wires : UL 1007 AWG#24 or Equivalent
lmpeller :7 Blades
Rotational direction CCW view from impeller side
Mass:90g

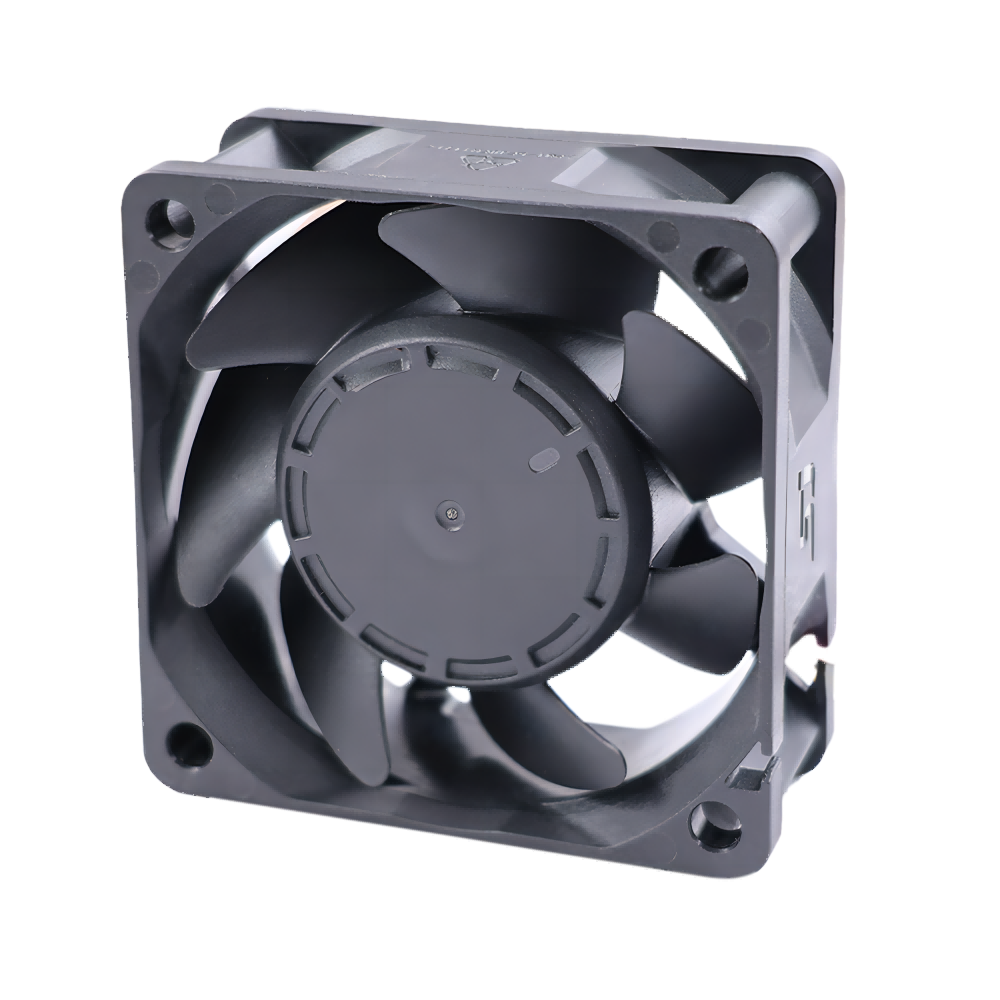

SD6025
OverallDimension :60x60x25mm
Material:lmpeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires:UL 10368 AWG#26 or Equivalent
Impeller:7 Blades
Rotational direction CCW view fromimpeller side
Mass :80g
IP-Rating :IP68

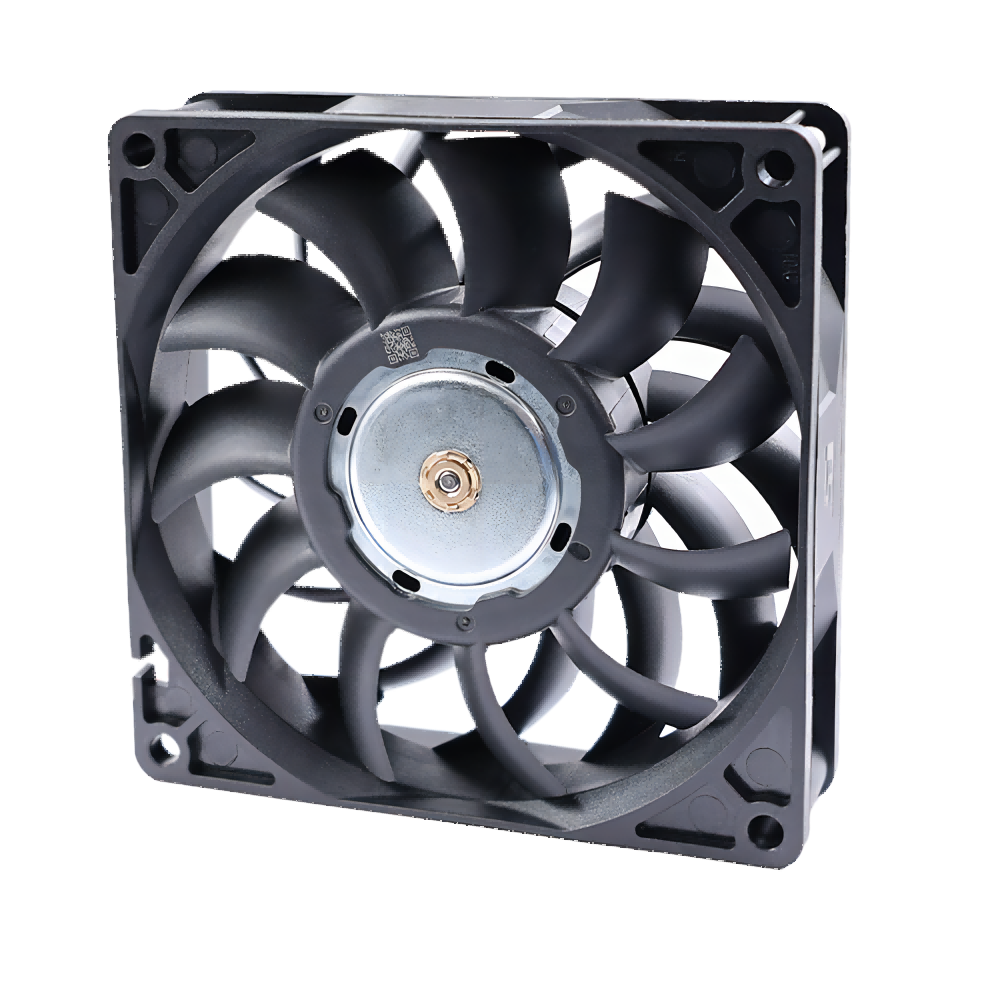

SA9225
Overall Dimension:92x92x25mm
Material:lmpeller &Frame Plastic(Fire Rating UL94V-0)
Lead Wires : UL 1007 AWG#24 or Equivalent
Impeller : 1l Blades
Rotational direction CCW view from impeller side
Mass:130g
