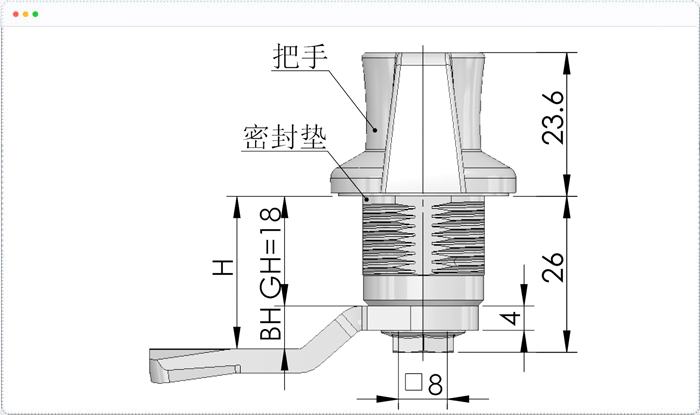

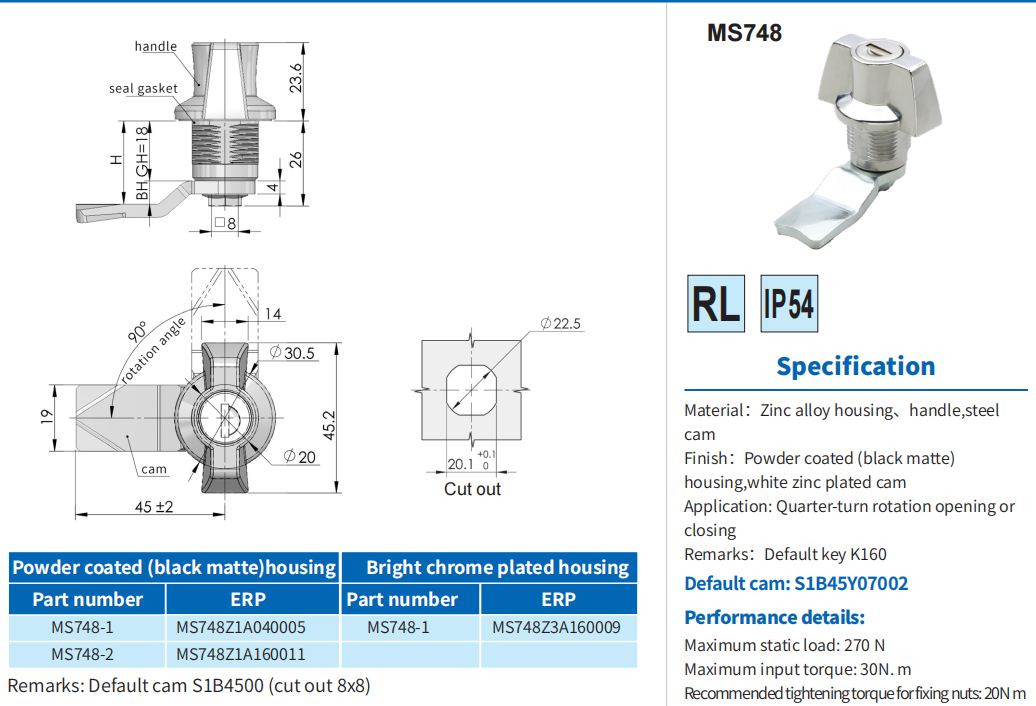

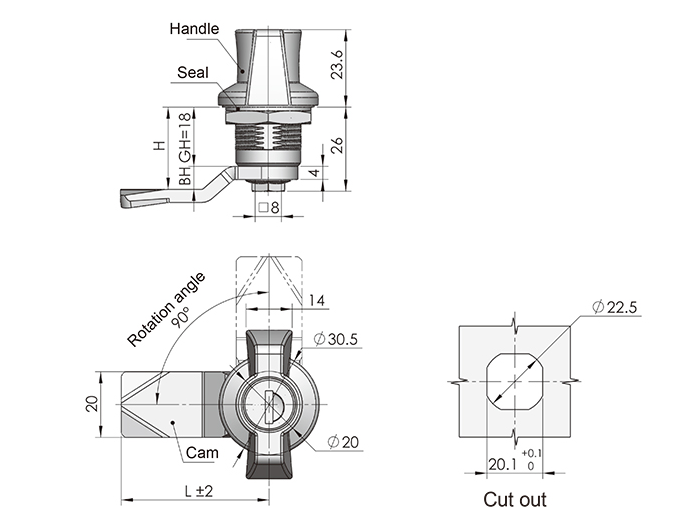

MS748

Material: Zinc alloy base, handle, carbon steel bolt

Surface treatment: Spray painted (black light) base, white zinc plated steel bolt

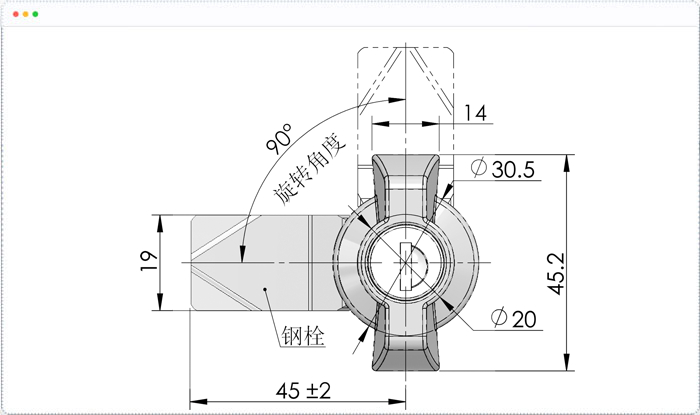

Structural description: 90 ° rotation to achieve opening or locking

Note: K160 key is provided by default

Steel bolt material number: S1B45Y07002 (default)

Performance parameter

Maximum static load: 270 N

Maximum input torque: 30 N.m

Recommended tightening torque for fixing nuts: 20N m
