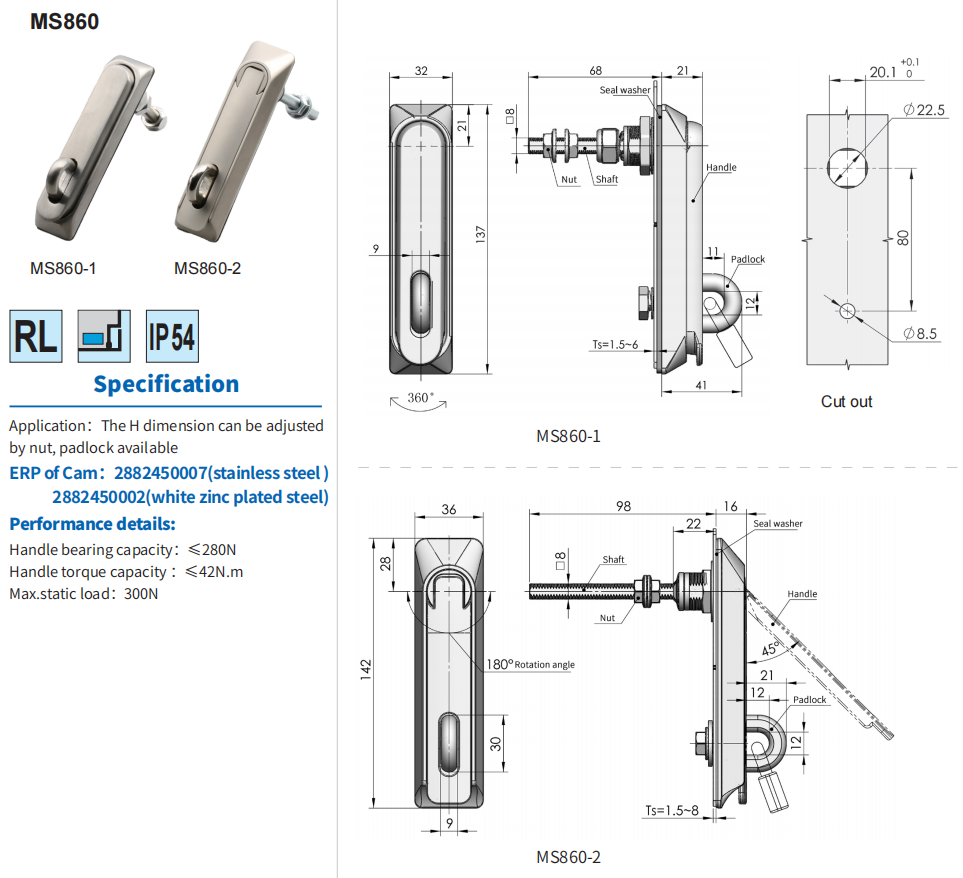

MS860-1 Swinghandle

Swinghandle

Specification

Material: stainless steel housing, handle, shaft

Finish: Drawbench polished for housing and handle,electrolysis for shaft.

Protection level:lP54

Structure description: Adjust the stop height by the nut;With padlock

Notes

Handle bearing tension: ≤280N

Handle bearing torque: ≤42N.M

Maximum static load: 3N.M
